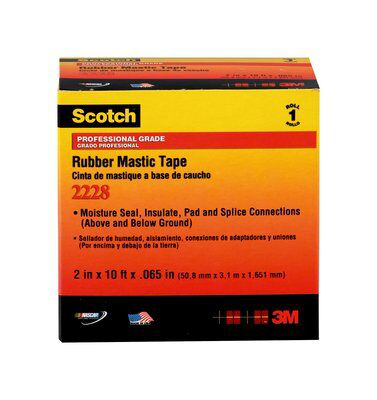

3M 2228-1x10FT Rubber Mastic Tape

Features

• Is a UL recognized component for applications up to 130°C (266°F)
• Scotch® Rubber Mastic Tape 2228 is a 65-mil thick, premium grade, highly conformable self-fusing rubber electrical insulating and sealing tape.
• Primary electrical insulation for cable and wire connections and vibration padding for motor leads rated up to 1000 volts
• Thick construction allows quick application build–up and padding over irregular connections
• Scotch® Rubber Mastic Tape 2228 consisting of an ethylene propylene rubber (EPR) backing coated with an aggressive, temperature-stable mastic adhesive on a liner. Designed for electrical insulating and moisture sealing, intended for both indoor and weather exposed outdoor applications including resistance to UV exposure.
• Applicable over a temperature range of 32 to 100°F (0 to 38°C) without loss of physical properties
• RoHS 2011/65/EU Compliant

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80610737662
• Manufacturing Origin: USA
• Adhesion to Steel: 15.0lb/in (26,2N/10mm)
• Application: Insulation
• Backing Material: Ethylene Propylene Rubber
• Brand: Scotch®
• Breaking Strength (Imperial): 150 lb.
• Color Family: Black
• Dielectric Strength (V/mil): 500 V/mil
• Elongation: 1000 %
• Elongation at Break: 10
• Emergency Overload Temperature (Celsius): 130°C
• Emergency Overload Temperature (Fahrenheit): 266°F
• Insulated: Yes
• Liner/Linerless: Liner
• Material: EPR with Liner
• Maximum Operating Temperature (Celsius): 90 Degree Celsius
• Maximum Operating Temperature (Fahrenheit): 194 Degree Fahrenheit
• National Stock Number: 5970014941416, 9320015134524
• Operating Temperature Range (Celsius): 0 °C to 90 °C
• Overall Length (Imperial): 10 ft
• Overall Length (Metric): 3 m
• Overall Thickness (Imperial): 65 mil
• Overall Thickness (Metric): 1.65 mm
• Overall Width (Imperial): 1 in
• Overall Width (Metric): 25.4 mm
• Product Color: Black
• Self-extinguishing: No
• Self-sticking: Yes
• Shelf Life in Months (From Date of Manufacture): 60
• Specifications: ASTM D-4388 Type 1, 2 & 3
• Specifications Met: ASTM D-4388 Type 1, 2 & 3
• Suitable for High Voltage: No
• Tape Color: Black
• Tape Length (Metric): 3.1 m
• Tape Width (Imperial): 1 in
• Tape Width (Metric): 25 mm
• UV Resistant: Yes
• Voltage: 35 kV
• Vulcanizing: No
