3M 35-1/2X20FT-OR 35 ORANGE 1/2" X
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.88/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 35-1/2X20FT-OR
Capital Electric Part # 4519

Overview

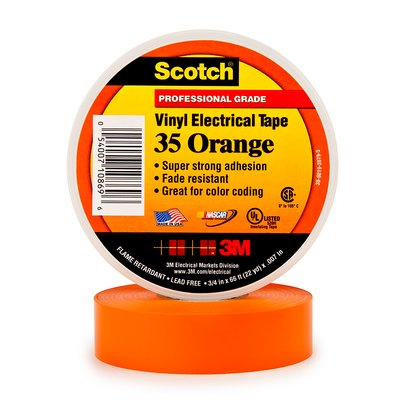

Scotch Vinyl Electrical Color Coding Tape 35 is used in phase identification, color coding leads and piping systems and for marking safety areas. This tape is abrasion- and weather-resistant, with excellent mechanical and electrical insulation properti

Specifications

  • Trademark: Scotch
  • Product Family: Scotch Vinyl Color Coding Electrical Tape 35
  • Voltage Application: Low Voltage
  • Product Type: Vinyl Tape
  • Tape Length (metric): 6 m
  • Operating Temperature Range (Fahrenheit): 32 to 220 Degree Fahrenheit
  • Agency Approvals: CSA, VDE 0340-TEIL1, UL Listed
  • Adhesive Material: Rubber Resin
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Thickness (Metric): 0.177 mm
  • Width: 0.5 Inch
  • Thickness: 7 mil
  • Material: PVC
  • Dielectric Strength (V/mil): 1250 V/mil
  • Operating Temperature Range (Celsius): 0 to 105 Degree Celsius
  • RoHS 2011/65/EU Compliant: Yes
  • UV Resistant: No
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Operating Temperature (Fahrenheit): 32 to 220 Degree Fahrenheit
  • Color: Orange
  • Tape Width (metric): 13 mm
  • Tape Grade: Premium
  • Operating Temperature (Celsius): 0 to 105 Degree Celsius
  • Tape Type: Vinyl
  • Length (Metric): 6.1 m
  • Tape Color: Orange
  • Width (Metric): 12 mm
  • Length: 20 Linear Foot
  • Family: Scotch Vinyl Color Coding Electrical Tape 35
  • Backing Material: Polyvinyl Chloride
  • Breaking Strength: 17 lb/in

Documents

Overview

UPC 05400710273
Product Description Scotch® Vinyl Color Coding Electrical Tape 35 is a 7 mil thick, premium grade, color coded electrical tape. This flame retardant tape is suitable for use in phase identification, color coding of motor leads and piping systems and for marking safety areas. This tape is 600V rated and withstands a temperature range of 32 to 221 °F (0 to 105 °C).
GTiN 00054007102731
Length 20 ft
Width 20 ft
Size 1/2x20FT
Color Orange
Type Vinyl
Thickness 0.177 mm
Material PVC
Backing Material Vinyl
Applications Premium
Temperature Rating 0 - 105 C
Family Brand Name 3M
Sub Brand Scotch
Adhesive Type Rubber Resin
Operating Temperature 0 To 105 C
Tape Color Orange
Dielectric Strength 1250 V
Tape Length 6 m
