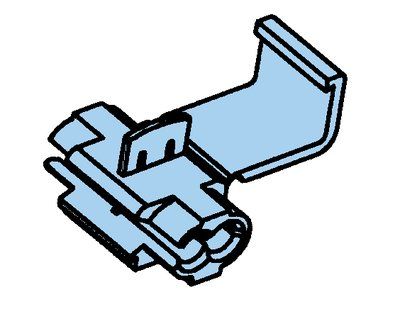

3M 560-POUCH 560-POUCH IDC Conn 560
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.26/ea
In Stock | 1600 available at 4 locations
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 560-POUCH
Capital Electric Part # 24900

Overview

Electrically connects a (tap) wire end to a through (run) wire and insulates the connection. Used for tap and parallel splicing. Flame retardant. Maximum insulation O.D.diameter of 0.145 inches (3,68 mm) and a operating temperature of 221(deg)F (105(deg)C). The suggested application tool for this connector is the E-9BM Crimping Tool.

Specifications

  • Color: Light Blue
  • Trademark: Scotchlok
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Packaging: Box
  • Maximum Recommended Voltage Rating: 600 V
  • Connector Style: Insulation Displacement
  • Connection Type: Double Run or Tap
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • RoHS 2011/65/EU Compliant: Yes
  • Minimum Wire Gauge: 18 AWG
  • Flame Retardant: Yes
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Family: IDC for Electrical Applications
  • Agency Approvals: UL and CSA
  • Product Family: IDC for Electrical Applications
  • Conductor Sizes: 18 - 16 AWG / 14 AWG Stranded
  • Maximum Wire Gauge: 16 AWG

Documents

Overview

UPC 05400700839
Product Description 3M Scotchlok Insulation Displacement Connector 560/560B is a double run or tap connector for tap or parallel splicing. It is suitable for general purpose electrical connections on an auto, boat, van or trailer. Polypropylene insulated, self stripping and flame retardant.
GTiN 00054007008392
Color Light Blue
Type Insulation Displacement
Conductor Size 14 AWG
Wire Size 18-16 AWG / 14 AWG Stranded
Cable Size 18 - 16 AWG/14 AWG Stranded
Connection Type Double Run Or Tap
Temperature Rating 221 F
Family Brand Name 3M
Flame Retardant Yes
Sub Brand Scotchlok
Voltage 600 Volt
