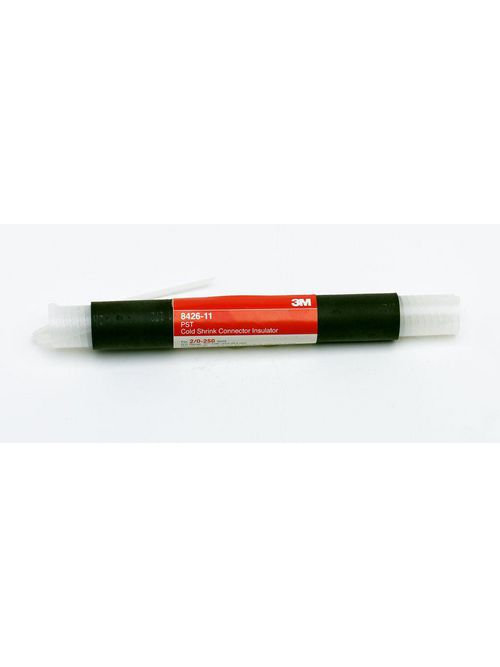

3M 8426-11 Cold Shrink Connector Insulators
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 8426-11
Capital Electric Part # 10092


3M™ 8420 Cold Shrink Connector Insulator is an open-ended, tubular sleeve that provides ozone, acids and alkalis resistance. This environmental sealing insulator offers primary electrical insulation for 1 kV-rated applications. The tough, durable, EPDM rubber construction makes the insulator withstand operating temperatures of -40 to 194 degrees F (-40 to 90 degrees C).

3M™ 8420 Connector Insulator is designed for use on all solid dielectric insulated wires and cable splices. This cold shrink insulator offers moisture-tight sealing while maintaining its prolonged resiliency and pressure. It is ideal for insulating secondary splices, direct-buried or submersible, dig-in repairs and physical protection of high-voltage, air-insulated connectors or lugs. ANSI Certified and RoHS 2011/65/EU Compliant.

  • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
  • Simple installation which requires no tools
  • Suitable for insulating secondary splices, direct-buried or submersible and dig-in repairs
  • Insulates cable or connectors within a diameter range of 0.55 - 1.18 in (13,9 - 30,1 mm)
  • Accommodates 2/0 AWG to 250 kcmil conductor sizes
  • Made of EPDM rubber which contains no chlorides or sulfur
  • Withstands temperatures of -40 to 194 degrees F (-40 to 90 degrees C)
  • Environmental sealing for communication and other non-electrical applications
  • ANSI Certified and RoHS 2011/65/EU Compliant
  • 10/case


  • 3M ID: 80610927677
  • Applications: Insulation, mechanical protection, repair
  • Cable Type: Non-Shieled, Solid Dielectric Power Cable
  • Case Quantity: 10
  • Color: Black
  • Conductor Material: Aluminum, Copper
  • Conductor Sizes: 2/0 AWG, 250 kcmil, 3/0 AWG, 4/0 AWG
  • Inner Diameter After Heat-Shrink: 13.9 mm
  • Inner Diameter Before Heat-Shrink: 30.1 mm
  • Length: 11 Inch
  • Length (Metric): 279 mm
  • Material: EPDM-rubber
  • Maximum Connector Length: 7.0 in
  • Maximum Connector Length (metric): 177.8 mm
  • Number of Conductors: 1
  • Product Type: Splice
  • RoHS 2011/65/EU Compliant: RoHS 2011/65/EU Compliant, Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Shielding Type: Non-shielded, Tape Shield, UniShield®, Wire Shield
  • Splice Type: Cold Shrink
  • Trademark: 3M
  • Voltage: 1 kV
  • Voltage Application: Low Voltage

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.


MDM UPC 05400734458
GTiN 00054007344582
Length 11 Inch
Size 2/0 AWG; 250 kcmil; 3/0 AWG; 4/0 AWG
Color Black
Voltage 1 kV
Type Thick Wall
Splice Type Cold Shrink
Material Rubber
Shrink Ratio 2:1
Product Type Splice
Number of Conductors 1
Conductor Size 2/0 AWG, 250 MCM, 3/0 AWG, 4/0 AWG
Applications For Power Cables
Cable Type Power Cable
Temperature Rating 0 - 80 C
Family Brand Name 3M
Wall Thickness 4.06 mm
Used With Aluminum, Copper Conductors
Max Operating Temperature 194 degrees F
Overall Length 11 in
