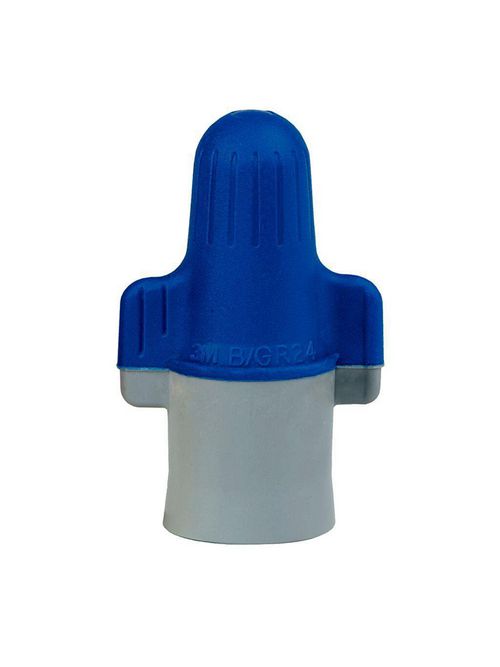

3M B/G+JUG 250/Jug Blue/Gray Spring Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$0.35/ea
ea
Adding...
Order in multiples of 250 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # B/G+JUG
Capital Electric Part # 23245

Features

  • Strong bite for a secure, reliable connection
  • Flexible spring expands for greater wire range and reuse
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
  • UL Listed
  • UL Listed and CSA Certified

Specifications

  • Color Family: Multi-Color
  • Conductor Sizes: 14 - 6 AWG
  • Conductor Size Unit: AWG
  • Connection Type: Wire
  • Connector Style: Twist On
  • Family: 3M™ Performance Plus Wire Connector
  • Flame Retardant: Yes
  • Material: Plastic
  • Maximum Conductor Size: 6 AWG
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Voltage Rating: 600 V (1000 V in signs, lighting fixtures and luminaries)
  • Maximum Wire Gauge: 6 AWG
  • Minimum Conductor Size: 14 AWG
  • Minimum Operating Temperature (Celsius): 0 NP
  • Minimum Operating Temperature (Fahrenheit): 0 NP
  • Minimum Wire Gauge: 14 AWG
  • Product Color: Blue - Gray
  • Product Type: Connector
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Voltage Rating: 600 Volt
  • Wire Connector Type: Twist-on Wire Connectors

Overview

MDM UPC 05400743151
Family Brand Name 3M
GTiN 00054007431510
Color Blue,Gray
Voltage 600/1000 Volt
Type Wire
Material Plastic
Temperature Rating 221 F
TC Connection Twist On
Max Operating Temperature 221 degrees F
