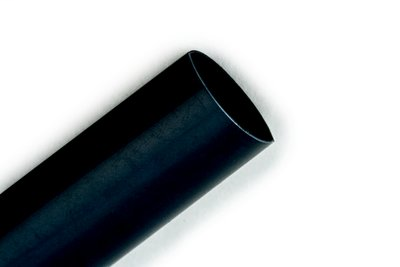

3M FP0.750BK48"S FP 3/4 BK 48" 12/B
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4.11/ea
In Stock | 8 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # FP0.750BK48""S
Capital Electric Part # 765917

Specifications

  • Product Form: 48 in (1.22 m) sticks
  • Flame Retardant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tubing Type: Single (Thin) Wall
  • Minimum Expanded Tubing I. D.: 3 Inch
  • Length: 48 Inch
  • Size (metric): 19.05 mm
  • Expanded Inner Diameter: 0.75 Inch
  • Operating Temperature (Fahrenheit): -67 to 275 Degree Fahrenheit
  • Material: Polyolefin
  • Size: 0.75 Inch
  • Color: Black
  • UL Bug Temperature (Fahrenheit): 257 Degrees Fahrenheit
  • Agency Approvals: CSA, UL Recognized
  • Shrink Ratio: 2:1
  • Operating Temperature (Celsius): -55 to 135 Degrees Celsius
  • Recovered Inner Diameter: 0.375 Inch
  • RoHS 2011/65/EU Compliant: Yes
  • Expanded Inner Diameter (metric): 19.05 mm
  • Recovered Inner Diameter (metric): 9.52 mm
  • UL Bug Voltage: 600 Volt
  • UL Bug Temperature (Celsius): 125 Degrees Celsius

Documents

Overview

UPC 05112859598
Product Description 3M Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.
GTiN 00051128595985
Length 48 in
Color Black
Type Single (Thin) Wall
Thickness 0.03
Shrink Ratio 2 to 1
Family Brand Name 3M
Outside Diameter 0.75 in
Dielectric Strength 900 V/mil
Inside Diameter 0.375
Size 0.75 in
Operating Temperature -55 To 135 C
Material Polyolefin
Flame Retardant Yes
