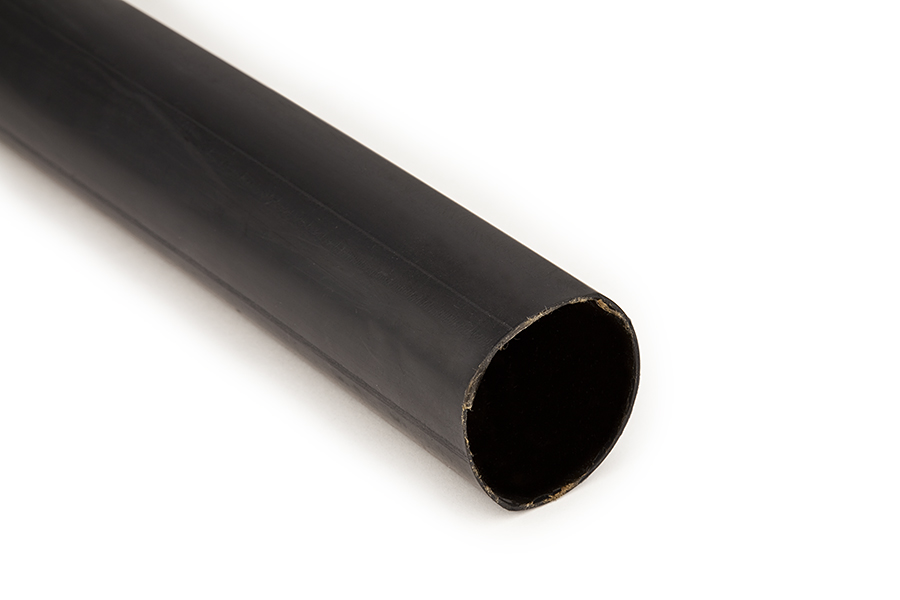

3M IM1.500BK48" IMCSN 1500 BK 48A P
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$21.68/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # IM1.500BK48""
Capital Electric Part # 47848

Features

  • Superior resistance to abrasion, corrosion and chemicals
  • Offers reliable performance for electrical splices, connections and terminations
  • Suitable for insulating secondary splices, as well as direct buried, submersible and dig-in repairs
  • Made of black cross-linked polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • RoHS 2011/65/EU Compliant

Specifications

  • Adhesive Lined: Yes
  • Application Specifications: MIL-I-23053/15A Class 2 - ABS
  • Cable Size Range: 1/0 AWG-250 kcmil
  • Color Family: Black
  • Expanded Inner Diameter: 1.5 in
  • Expanded Inner Diameter (Metric): 38.1 mm
  • Flame Retardant: No
  • Heat Shrink Type: Adhesive-Lined Polyolefin Heat Shrink Tubing
  • Inner Diameter After Shrink (Imperial): 0.5 in
  • Inner Diameter After Shrink (Metric): 12.7 mm
  • Inner Diameter Before Shrink (Imperial): 1.5 in
  • Inner Diameter Before Shrink (Metric): 38.1 mm
  • Material: Cross-linked Polyolefin
  • Maximum Operating Temperature (Celsius): 110 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 230 Degree Fahrenheit
  • Operating Temperature (Celsius): -55 to 100 Degrees Celsius
  • Operating Temperature (Fahrenheit): -67 °F to 230 °F
  • Operating Temperature Range (Celsius): -55 °C to +105 °C
  • Operating Temperature Range (Fahrenheit): -67 °F to 230 °F
  • Overall Length (Imperial): 48 in
  • Overall Length (Metric): 1.22 m
  • Product Color: Black
  • Product Key: MN07 IMCSN TUBING 1500 FPE
  • Recovered Inner Diameter: 0.5 in
  • Recovered Inner Diameter (Metric): 10.9 mm
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Shrink Ratio: 3:1
  • Tubing Type: Medium Wall
  • Voltage Rating: 1 kV

Overview

MDM UPC 05400758813
Family Brand Name 3M
GTiN 00054007588139
Length 48 Inch
Color Black
Type Medium Wall
Shrink Ratio 3 to 1
Overall Length 48 in
