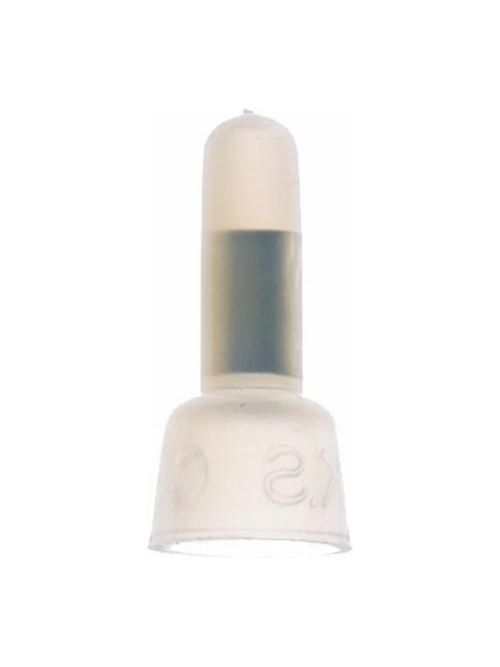

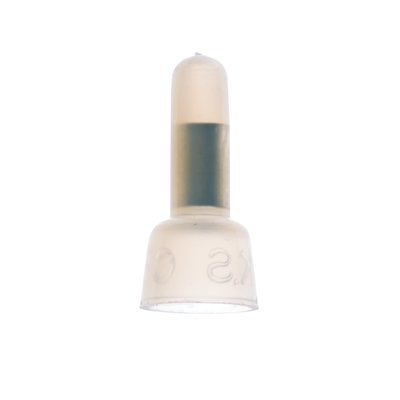

3M S-11-A(Boxed) 100/Bottle Vinyl Insulated Closed End Connector
Product image thumbnail 0
Product image thumbnail 1
$0.41/ea
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # S-11-A
Capital Electric Part # 1097787

Features

  • Vinyl-insulated barrel ensures a secure fit and offers reliable performance
  • 3M™ Scotchlok™ Color-Coded Closed-End Connector is an electrical crimp sleeve connector with a copper insert that allows for fast splicing of copper conductors. The vinyl-insulated connector is 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires. It withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C).
  • A smooth, flared end provides quick wire insertion
  • 3M™ Scotchlok™ Closed-End Connector is color-coded for quick and easy identification of the wire size required. It allows for quick wire insertion with a smooth, flared entry. The copper insert offers good conductivity. RoHS 2011/65/EU Compliant.
  • Built-in wire stop for correct positioning
  • Accommodates wire sizes 22 to 16 AWG
  • Copper insert offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton

Specifications

  • 3M ID: 80611466436
  • Brand: Scotchlok™
  • Color Family: White
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Overall Length (Imperial): 0.83 in
  • Overall Length (Metric): 21.1 mm
  • Product Color: Translucent White
  • Terminal Type: Standard

Overview

UPC 05112858997
Product Description Closed End Connector Vinyl Insulated, 100/bottle, S-11-A(Boxed)
GTiN 00051128589977
Type Closed End
Material Nylon
Family Brand Name Scotchlok
Terminal Size 22 - 16 AWG
Sub Brand Scotchlok
Length 0.83 in
Barrel Type Insulation Grip
Terminal Type Closed End
Conductor Size 22 To 16 AWG
Insulation Material Nylon
Flame Retardant No
Color White
Max Operating Temperature 105 C
Overall Length 0.83 in
