AFC 1704B60T05 12-2 MC TUFF BE WE G
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$657.69/m (1000 ft)
Usually ships within 6 to 8 Days
ft
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer AFC Cable Systems
Mfg Catalog # 1704B60T05
Capital Electric Part # 209878

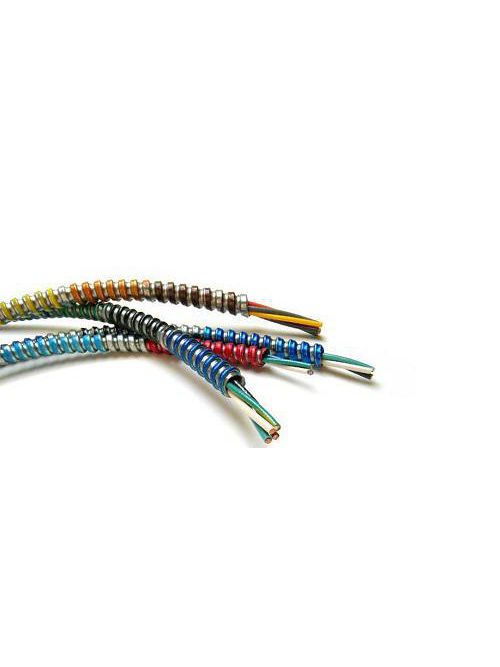

MC TUFF Type MC Cable, Traditional Lightweight, With Ground And Neutral, 2 Conductors, 12 AWG Conductor And Ground, Solid Copper, Outside Diameter: 0.495 IN, 600 V, 90 DEG C (Dry), THHN Insulation, Polypropylene Tape Shield, Galvanized Interlocking Steel Strip (Blue Striped) Armor, Color: 120/208 V: Blue, White, Green, Coil, Weight: 147 LB/1000 FT, UL 83, 1479, 1569, 1581, 2556 File Number E80042, UL File Number R-14141, NEC 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645, Federal Specification A-A-59544 (Formerly J-C-30B), Meets OSHA And HUD Requirements, ISO 9001 Certified

Overview

UPC 07768019859
Product Description MC TUFF Type MC Cable, Traditional Lightweight, With Ground And Neutral, 2 Conductors, 12 AWG Conductor And Ground, Solid Copper, Outside Diameter: 0.495 IN, 600 V, 90 DEG C (Dry), THHN Insulation, Polypropylene Tape Shield, Galvanized Interlocking Steel Strip (Blue Striped) Armor, Color: 120/208 V: Blue, White, Green, Coil, Weight: 147 LB/1000 FT, UL 83, 1479, 1569, 1581, 2556 File Number E80042, UL File Number R-14141, NEC 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645, Federal Specification A-A-59544 (Formerly J-C-30B), Meets OSHA And HUD Requirements, ISO 9001 Certified
GTiN 00077680198594
Length 1,000 ft
Color 120/208 V: Blue, White, Green
Type Traditional Lightweight Type MC Cable With Ground And Neutral
Number of Conductors 2
Conductor Size 12 AWG Conductor And Ground
Weight 0.147 lb/ft
Temperature Rating 90 C
Family Brand Name AFC Cable Systems
Insulation Material THHN
Conductor Material Copper
Outside Diameter 0.495 in
Sub Brand MC TUFF
Voltage 600 Volt
