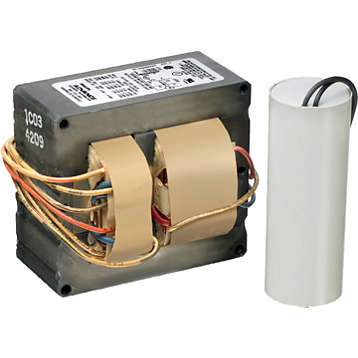

Philips Advance 71A5593001D 120/208/240/277 VAC 60 Hz 175 W Magnetic Metal Halide Ballast Kit

idw

Product Data

• Skus/Case: 1
• Full product name: MH BAL 175W M137/M152 QUAD KIT
• Short product name: MH BAL 175W M137/M152 QUAD KIT
• Bar code on pack: 781087120798
• Pieces per Sku: 1
• Bar code on case: 30781087120799
• Product number: 71A5593001D
• Logistics code(s): 913700503051
• eop_net_weight_pp: 3.634 kg

General Characteristics

• Capacitor Requirements: 370V
• Line Frequency: 60 Hz
• Line Voltage: 120/208/240/277 V
• Base Model: 71A5593
• Capacitor Dia/Oval Dim: 1.65 in
• Suitable for Outdoor use?: Yes
• Input Current (Operating): 1.8/1.05/0.9/0.8 A
• Core Size: 3 X 4 (2 coil)
• Ignitor Catalog Number: LI533-H4
• Capacitor Temp Rating: 105°C
• Capacitor value [μF]: 11 MFD
• Circuit Type: SUPER-CWA
• Capacitor Catalog Number: 7C110M40
• Ballast Type: Magnetic HID
• Capacitor Height: 3.75 in
• Ignitor Temp Rating: 105°C
• Lamp Type: 175W MH
• Number of Lamps: 1 piece
• Family Name: Core & Coil MH

Approval & Application Chars

• ANSI Code: M137/M152
• CCC certificate: No
• UL Recognized: Yes
• UL Insulation Class: H(180°C)
• HiPot Test (1 minute): 2000 V
• cUL certificate: No
• FIDE Certificate: No
• UL Temperature Code: 1029C
• Chia Quality Certificate: No
• HiPot Test (2 seconds): 2500 V
• CSA certificate: Yes
• RoHS Compliant: Yes
• NOM certificate: No
• EISA: No
• CEC Listing: No
• Open Circ Voltage Test (Volts): 250-300 V
• VDE certificate: No
• Approbation Marks: ULR, CSA, RoHS
• SASO Certificate: No
• Temperature marking: C/C/C/C
• UL Listed: No
• CE marking: No
• ETL Certificate: No

Operating Characteristics

• Inp. Current (Open Circuit): 1.9/1.05/0.9/0.8 A
• Input Current (Starting): 0.7/0.75/0.65/0.55 A
• Power Factor: 0.90
• Input Current Short Circuit: 0.4-0.7/0.22-0.35/0.2-0.35/0.17-0.32 A
• Nominal Open Circuit Voltage: 275 V
• Ballast factor: 1 -
• Constant wattage deviation: 10%
• Automatic restart: No
• Secondary ShortCircuit Current: 1.6-1.95 A
• Input Power Gear: 208 W
• Input Voltage at Lamp Dropout: 60/104/120/138 V

Product Dimensions

• Coil Depth C1: 3.5 in
• Width B1: 2.8 in
• Stack Height C2: 2.24 in
• Length A1: 3.9 in
• Length A2: 3.5 in
• Width B2: 2.4 in

Wiring Characteristics

• Max Dist. Ball to Lamp(Remote): 2'
• Wire Length by Color: 12"
• Recommended Fuse: 5/3/3/3 A
• Wire Type: Stranded
• Allowed Wiring Config(Remote): Yes
• Wire Striplength: 0.5 mm

System Chars On Driver Level

• Rated Lamp Watts: 175W
