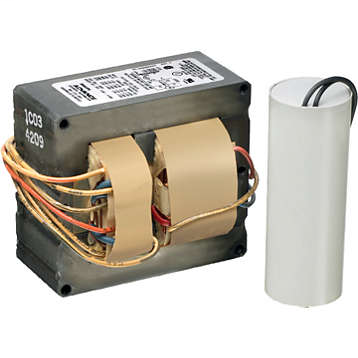

Philips Advance 71A5771001D 120/208/240/277 VAC 60 Hz 250 W Magnetic Metal Halide Ballast Kit
Product image thumbnail 0
Product image thumbnail 1
$78.32/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance Transformer
Mfg Catalog # 71A5771-001D
Capital Electric Part # 89179

idw

Product Data

  • Bar code on pack: 781087096475
  • Logistics code(s): 913700534909
  • eop_net_weight_pp: 4.523 kg
  • Pieces per Sku: 1
  • Product number: 71A5771001D
  • Bar code on case: 30781087096476
  • Full product name: MH BAL 250W M58 QUAD KIT
  • Short product name: MH BAL 250W M58 QUAD KIT
  • Skus/Case: 1

General Characteristics

  • Ignitor Catalog Number: NA
  • Core Size: 3 X 4 (2 coil)
  • Capacitor value [μF]: 15 MFD
  • Circuit Type: CWA
  • Family Name: Core & Coil MH
  • Lamp Type: 250W MH
  • Ballast Type: Magnetic HID
  • Capacitor Temp Rating: 105°C
  • Capacitor Catalog Number: 7C150P40R
  • Line Voltage: 120/208/240/277 V
  • Capacitor Requirements: 400V
  • Ignitor Temp Rating: NA
  • Capacitor Height: 3.75 in
  • Number of Lamps: 1 piece
  • Input Current (Operating): 2.6/1.5/1.3/1.1 A
  • Capacitor Dia/Oval Dim: 1.75 in
  • Suitable for Outdoor use?: Yes
  • Line Frequency: 60 Hz
  • Base Model: 71A5771

Approval & Application Chars

  • cUL certificate: No
  • UL Insulation Class: H(180°C)
  • ETL Certificate: No
  • RoHS Compliant: Yes
  • CEC Listing: No
  • Temperature marking: C/C/D/D
  • Chia Quality Certificate: No
  • Approbation Marks: ULR, CSA, RoHS
  • FIDE Certificate: No
  • UL Listed: No
  • Open Circ Voltage Test (Volts): 270-330 V
  • UL Temperature Code: 1029D
  • CSA certificate: Yes
  • CE marking: No
  • HiPot Test (1 minute): 2000 V
  • NOM certificate: No
  • VDE certificate: No
  • ANSI Code: M58
  • HiPot Test (2 seconds): 2500 V
  • EISA: No
  • SASO Certificate: No
  • CCC certificate: No
  • UL Recognized: Yes

Operating Characteristics

  • Input Current Short Circuit: 1.2-1.8/0.7-1/0.6-0.9/0.5-0.75 A
  • Secondary ShortCircuit Current: 2-3 A
  • Power Factor: 0.90
  • Input Power Gear: 294 W
  • Ballast factor: 1 -
  • Constant wattage deviation: 8%
  • Nominal Open Circuit Voltage: 300 V
  • Inp. Current (Open Circuit): 2.6/1.5/1.3/1.1 A
  • Input Current (Starting): 1/0.6/0.5/0.45 A
  • Input Voltage at Lamp Dropout: 60/104/120/138 V
  • Automatic restart: No

Product Dimensions

  • Width B2: 2.4 in
  • Stack Height C2: 3 in
  • Width B1: 2.8 in
  • Length A2: 3.5 in
  • Length A1: 3.9 in
  • Coil Depth C1: 4.2 in

Wiring Characteristics

  • Wire Striplength: 0.5 mm
  • Allowed Wiring Config(Remote): Yes
  • Max Dist. Ball to Lamp(Remote): Determined by AWG used
  • Wire Length by Color: 12"
  • Wire Type: Stranded
  • Recommended Fuse: 8/5/5/3 A

System Chars On Driver Level

  • Rated Lamp Watts: 250W

Documents

Other Downloads

Leaflets

Overview

UPC 78108709647
Product Description The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire. The core and coil also forms the nucleus of Philips Advance's five other ballast configurations.
GTiN 00781087096475
Length 3.5 in
Width 2.4 in
Type Magnetic HID
Applications Lighting Luminaire Component
Height 2.8 in
Weight 10 LB
Wire Type Stranded
Frequency 60 Hz
Wattage 250 Watt
Family Brand Name Philips Lighting
Lamp Type 250W MH
Number of Lamps 1
Ballast Type Magnetic HID
Power Rating 250 WTT
Blade Dimensions 100.012 mm L x 71.4375 mm W x 106.68 mm H
Start Type PROBE
Power Factor 0.90
Ballast Factor 1
Thermal Protection CLASS P
Lamp Wattage 250 W
Voltage null
Input Wattage 294 W
Input Current 1.1 A
