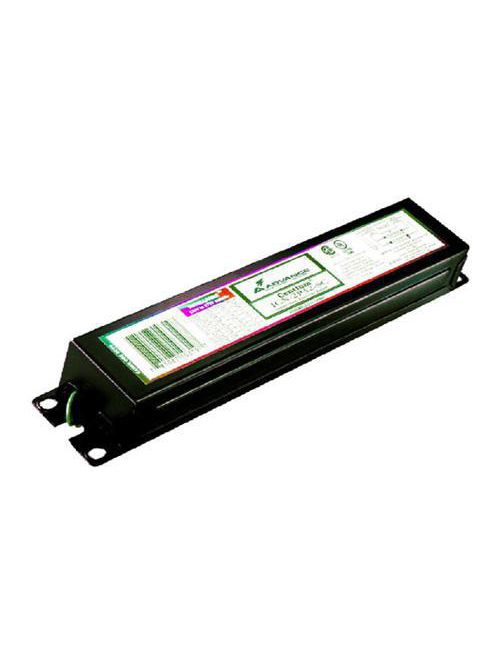

Advance ICN2S110SC35I 120 to 277 VAC 50/60 Hz 110 W 2-Lamp T12 Fluorescent Electronic Ballast
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$38.21/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance Transformer
Mfg Catalog # ICN2S110SC35I
Capital Electric Part # 470487

idw

Product Data

  • Logistics code(s): 913701212601
  • Pieces per Sku: 1
  • Bar code on pack: 781087085288
  • Full product name: ELE BALLAST (2) F96T12/HO 120-277V
  • Bar code on case: 30781087085289
  • Short product name: ELE BALLAST (2) F96T12/HO 120-277V
  • Product number: ICN2S110SC35I
  • Skus/Case: 10
  • eop_net_weight_pp: 0.613 kg

General Characteristics

  • Ballast Type: Electronic Fluorescent
  • Base Model: ICN2S110SC
  • Line Frequency: 50/60 Hz
  • Housing Material: Metal
  • Starting Method: Rapid Start
  • Lamp Type: F96T12/HO
  • Number of Lamps: 1/2 piece
  • Family Name: Centium
  • Input Voltage: 120-277 V
  • Suitable for Outdoor use?: Yes
  • Housing Dimensions: 9.5" x 1.7" x 1.18"
  • Housing: SC

Approval & Application Chars

  • CEC Listing: Yes
  • FIDE Certificate: No
  • cUL certificate: No
  • SASO Certificate: No
  • NOM certificate: No
  • Circle E logo: Yes
  • Approbation Marks: UL, CSA, DOE, CSA-E, RoHS
  • DOE: Yes
  • NEMA Premium: No
  • CSA certificate: Yes
  • EMC Immunity: FCC Non-Consumer
  • RoHS Compliant: Yes
  • CEE Rated: No
  • CSA E: Yes
  • UL Recognized: No
  • Energy Star: No
  • UL Listed: Yes

Operating Characteristics

  • Automatic restart: No
  • Input Power Gear: 191-186 W
  • Ballast Efficacy Factor: 0.47 -
  • Ballast factor: 0.9 -
  • Lamp Current Crest Factor: 1.7 -
  • Max THD: 10 %
  • Sound Rating: A
  • Ignition time: 1 s
  • Power Factor: 0.98

Product Dimensions

  • Length A2: 8.90 in
  • Height C1: 1.18 in
  • Width B1: 1.7 in
  • Length A1: 9.5 in

Wiring Characteristics

  • Allowed Wiring Config(Through): Yes
  • Max Dist.Ball to Lamp(Through): Red = 20'
  • Max Dist. Ball to Lamp(Remote): 20'
  • Wire Gauge: 18AWG
  • Wire Length by Color: See data sheet
  • Wire Type: Solid
  • Allowed Wiring Config(Remote): Yes
  • Color output terminals: No terminals
  • Connector type: No connector
  • Allowed Wiring Config(Tandem): Yes
  • Lamp Connection: Series
  • Max Dist. Ball to Lamp(Tandem): Red = 20'
  • Color input terminals: No terminals
  • Wire Striplength: 0.50/0.375 mm

System Chars On Driver Level

  • Rated Lamp Watts: 110W

Temperature Characteristics

  • T-case maximum: 70 C

Documents

Leaflets

Other Downloads

Overview

UPC 78108708528
Product Description No matter what the conditions require, operating at a variety of line voltages between 120V to 480V, whether located in high ambient temperature environments (requiring a 90 C rating) or not, our family of Philips Advance Centium ballasts are ideal for a wide variety of applications.
GTiN 00781087085288
Length 8.90 in
Width 1.7 in
Type Electronic Fluorescent
Height 1.18 in
Wire Size 18 AWG
Wire Type Solid
Frequency 50/60 Hz
Wattage 110 Watt
Family Brand Name Advance
Lamp Type F96T12/HO
Number of Lamps 2
Ballast Type Electronic Fluorescent
Housing Material Metal
Start Type RAPID START
Power Factor 0.98
Ballast Factor 0.9
Lamp Wattage 110 W
Total Harmonic Distortion 10
Sub Brand Centium
Voltage 120-277 Volt
Input Voltage 120/277 V
Input Wattage 191-186 W
