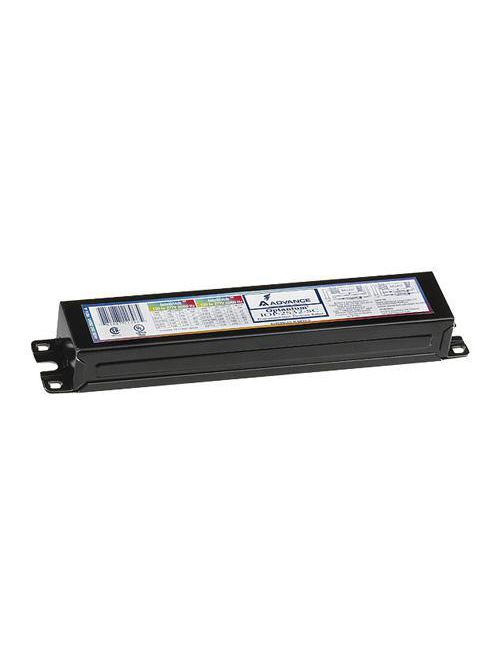

Philips Advance IOP2S2895SCSD35M 120/277 VAC 50/60 Hz 28 W 2-Lamp T5 Electronic Ballast
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$78.24/ea
In Stock | 33 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance Transformer
Mfg Catalog # IOP2S2895SCSD35M
Capital Electric Part # 375664

idw

Product Data

  • Bar code on case: 50781087057631
  • eop_net_weight_pp: 0.404 kg
  • Logistics code(s): 913710814902
  • Product number: IOP2S2895SCSD35M
  • Full product name: ELE BALLAST (2) F28T5 120-277V
  • Skus/Case: 20
  • Pieces per Sku: 1
  • Bar code on pack: 781087057629
  • Short product name: ELE BALLAST (2) F28T5 120-277V

General Characteristics

  • Housing Material: Metal
  • Family Name: Optanium
  • Lamp Type: F28T5
  • Input Voltage: 120-277 V
  • Housing Dimensions: 9.5" x 1.7" x 1.18"
  • Line Frequency: 50/60 Hz
  • Housing: SC
  • Base Model: IOP2S2895SCSD
  • Number of Lamps: 1/2 piece
  • Suitable for Outdoor use?: Yes
  • Ballast Type: Electronic Fluorescent
  • Starting Method: Programmed Start

Approval & Application Chars

  • CEE Rated: No
  • CSA E: No
  • CSA certificate: Yes
  • cUL certificate: No
  • Energy Star: No
  • UL Recognized: No
  • CEC Listing: Yes
  • UL Listed: Yes
  • FIDE Certificate: No
  • NOM certificate: No
  • NEMA Premium: No
  • EMC Immunity: FCC Non-Consumer
  • Approbation Marks: UL, CSA, RoHS
  • DOE: No
  • RoHS Compliant: Yes
  • Circle E logo: No
  • SASO Certificate: No

Operating Characteristics

  • Ignition time: 1.5 s
  • Automatic restart: Yes
  • Ballast factor: 0.95 -
  • Sound Rating: A
  • Input Power Gear: 60-58 W
  • Max THD: 10 %
  • Lamp Current Crest Factor: 1.6 -
  • Power Factor: 0.98
  • Ballast Efficacy Factor: 1.58 -

Product Dimensions

  • Width B1: 1.7 in
  • Length A2: 8.90 in
  • Length A1: 9.5 in
  • Height C1: 1.18 in

Wiring Characteristics

  • Wire Striplength: 0.50/0.375 mm
  • Wire Length by Color: See data sheet
  • Allowed Wiring Config(Remote): Yes
  • Allowed Wiring Config(Tandem): Yes
  • Connector type: No connector
  • Wire Type: Solid
  • Max Dist.Ball to Lamp(Through): Any = 7'
  • Color output terminals: No terminals
  • Max Dist. Ball to Lamp(Tandem): Any = 7'
  • Wire Gauge: 18AWG
  • Allowed Wiring Config(Through): Yes
  • Max Dist. Ball to Lamp(Remote): 7'
  • Lamp Connection: Series
  • Color input terminals: No terminals

System Chars On Driver Level

  • Rated Lamp Watts: 28W

Temperature Characteristics

  • T-case maximum: 70 C

Documents

Leaflets

Other Downloads

Overview

UPC 78108705763
Product Description Philips Advance Optanium ballasts with step-dim capability for T5 and T8 fluorescent lamps represent an affordable, energy-efficient, and versatile lighting solution designed to meet energy codes such as California's Title 24 and ASHRAE 90.1-2010 that require end users to reduce lighting power consumption by 50%. Operating from any line voltage switching device, the ballast's programmed-start circuitry provides extended lamp life in frequent switching applications like those associated with the use of occupancy sensors or motion detectors making this product the sustainable choice for many commercial applications.
GTiN 00781087057636
Length 8.90 in
Width 1.7 in
Height 1.18 in
Wire Size 18 AWG
Wire Type Solid
Frequency 50/60 Hz
Family Brand Name Philips Lighting
Lamp Type F28T5
Number of Lamps 2
Ballast Type Electronic Fluorescent
Housing Material Metal
Start Type PROGRAMMED START
Power Factor 0.98
Lamp Wattage 28 W
Sub Brand OPTANIUM
Voltage 120-277 Volt
Input Voltage 120/277 V
Input Wattage 60-58 W
