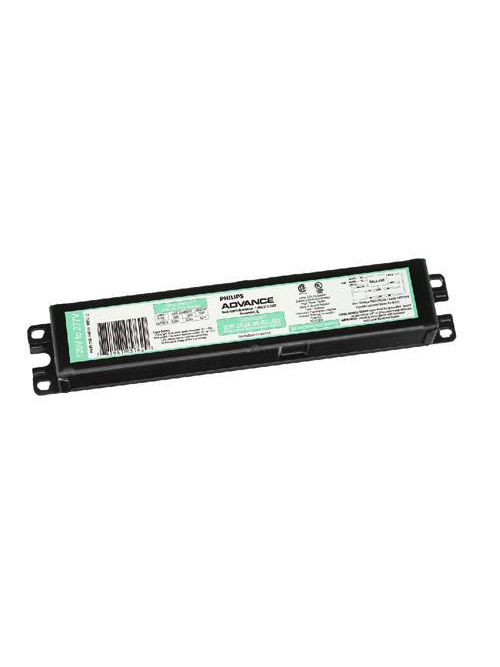

Advance IOPA3P32N35I 120 to 277 VAC 50/60 Hz 32 W 3-Lamp T8 Electronic Ballast
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$17.10/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance Transformer
Mfg Catalog # IOPA3P32N35I
Capital Electric Part # 824073

idw

Product Data

  • Product number: IOPA3P32N35I
  • eop_net_weight_pp: 0.350 kg
  • Skus/Case: 10
  • Bar code on pack: 781087124611
  • Logistics code(s): 913701245401
  • Short product name: ELE BALLAST (3) F32T8 120-277V
  • Pieces per Sku: 1
  • Bar code on case: 30781087124612
  • Full product name: ELE BALLAST (3) F32T8 120-277V

General Characteristics

  • Suitable for Outdoor use?: Yes
  • Number of Lamps: 2/3 piece
  • Housing Material: Metal
  • Housing Dimensions: 9.5" x 1.3" x 1.0"
  • Family Name: Optanium
  • Base Model: IOPA3P32N
  • Lamp Type: F32T8
  • Input Voltage: 120-277 V
  • Ballast Type: Electronic Fluorescent
  • Line Frequency: 50/60 Hz
  • Housing: N
  • Starting Method: Instant Start

Approval & Application Chars

  • EMC Immunity: FCC Non-Consumer
  • CEE Rated: Yes
  • Energy Star: No
  • UL Recognized: No
  • CEC Listing: Yes
  • cUL certificate: No
  • SASO Certificate: No
  • NOM certificate: No
  • Approbation Marks: UL, CSA, NEMA Premium, RoHS
  • CSA E: No
  • CSA certificate: Yes
  • UL Listed: Yes
  • DOE: No
  • Circle E logo: No
  • NEMA Premium: Yes
  • FIDE Certificate: No
  • RoHS Compliant: Yes

Operating Characteristics

  • Ignition time: 0.1 s
  • Input Power Gear: 82-80 W
  • Ballast Efficacy Factor: 1.06 -
  • Power Factor: 0.98
  • Max THD: 10 %
  • Lamp Current Crest Factor: 1.6 -
  • Ballast factor: 0.87 -
  • Automatic restart: Yes
  • Sound Rating: A

Product Dimensions

  • Length A1: 9.50 in
  • Width B1: 1.30 in
  • Height C1: 1.00 in
  • Length A2: 8.90 in

Wiring Characteristics

  • Allowed Wiring Config(Tandem): Yes
  • Max Dist.Ball to Lamp(Through): ES = 6' / Standard = 20'
  • Allowed Wiring Config(Remote): Yes
  • Color output terminals: No terminals
  • Wire Type: Solid
  • Max Dist. Ball to Lamp(Tandem): ES = 6' / Standard = 20'
  • Color input terminals: No terminals
  • Allowed Wiring Config(Through): Yes
  • Wire Gauge: 18AWG
  • Wire Length by Color: See data sheet
  • Lamp Connection: Parallel
  • Max Dist. Ball to Lamp(Remote): ES = 6' / Standard = 20'
  • Wire Striplength: 0.50/0.375 mm
  • Connector type: No connector

System Chars On Driver Level

  • Rated Lamp Watts: 32W

Temperature Characteristics

  • T-case maximum: 70 C

Documents

Other Downloads

Leaflets

Overview

UPC 78108712461
Product Description Reliable and energy efficient Philips Advance's Centium commercial grade specifications, plus added benefits of lamp striation reduction technology.
GTiN 00781087124611
Length 8.90 in
Width 1.30 in
Type Electronic Fluorescent
Applications Lighting Luminaire Component
Height 1.00 in
Weight 0.8 LB
Wire Size 18 AWG
Wire Type Solid
Frequency 50/60 Hz
Wattage 32 Watt
Family Brand Name Advance
Lamp Type F32T8
Number of Lamps 3
Ballast Type Electronic Fluorescent
Housing Material Metal
Power Rating 32 WTT
Start Type INSTANT START
Power Factor 0.98
Ballast Factor 0.88
Thermal Protection CLASS P
Lamp Wattage 32 W
Sub Brand OPTANIUM
Voltage 120-277 Volt
Input Voltage 120/277 V
Input Wattage 82-80 W
