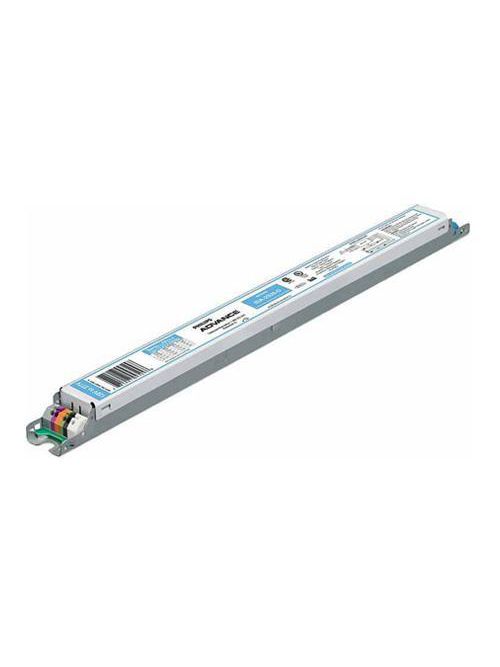

Philips Advance IZT2S54D35M 120 to 277 VAC 50/60 Hz 54 W 2-Lamp Electronic Dimming Ballast
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$238.92/ea
In Stock | 48 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance Transformer
Mfg Catalog # IZT2S54D35M
Capital Electric Part # 875431

idw

Product Data

  • Logistics code(s): 913701254102
  • Full product name: ELE DIMMING BALLAST (2) F54T5HO 120-277V
  • eop_pck_cfg: 12
  • Pieces per Sku: 1
  • Bar code on pack: 781087132159
  • eop_net_weight_pp: 0.441 kg
  • Product number: IZT2S54D35M
  • Short product name: ELE DIMMING BALLAST (2) F54T5HO 120-277V
  • Skus/Case: 12
  • Bar code on case: 50781087132154

General Characteristics

  • Base Model: IZT2S24D
  • Ballast Type: Dimmable Fluorescent
  • Lamp Type: F54T5HO
  • Family Name: Mark 7 0-10V
  • Input Voltage: 120-277 V
  • Number of Lamps: 2 piece
  • Suitable for Outdoor use?: Yes
  • Housing: D
  • Starting Method: Programmed Start
  • Line Frequency: 50/60 Hz
  • Housing Material: Metal
  • Housing Dimensions: 16.7" x 1.18" x 1.0"

Approval & Application Chars

  • EMC Immunity: FCC Consumer
  • cUL certificate: No
  • CEC Listing: Yes
  • NEMA Premium: No
  • RoHS Compliant: Yes
  • UL Listed: Yes
  • CSA E: No
  • UL Recognized: No
  • FIDE Certificate: No
  • Circle E logo: No
  • SASO Certificate: No
  • Energy Star: No
  • NOM certificate: No
  • Approbation Marks: UL, CSA, RoHS
  • CEE Rated: No
  • CSA certificate: Yes

Operating Characteristics

  • Power Factor: 0.98
  • Max. Input Watts: 118 (max) W
  • Min. Input Watts: 16 (min) W
  • Max. Ballast Factor: 1.0 (max) -
  • Lamp Current Crest Factor: 1.7 -
  • Automatic restart: Yes
  • Ignition time: 1.5 s
  • Min. Ballast Factor: 0.03 (min) -
  • Ballast Efficacy Factor: 0.85 -
  • Max THD: 10 %
  • Sound Rating: A

Product Dimensions

  • Length A1: 16.70 in
  • Width B1: 1.18 in
  • Length A2: 16.34 in
  • Height C1: 1.00 in

Wiring Characteristics

  • Color input terminals: BLK, WHT, VLT & GRY
  • Wire Striplength: 0.375 mm
  • Allowed Wiring Config(Remote): No
  • Wire Type: Solid
  • Allowed Wiring Config(Through): Yes
  • Lamp Connection: Series
  • Connector type: Poke-In
  • Allowed Wiring Config(Tandem): No
  • Color output terminals: RED, YEL & BLU
  • Max Dist. Ball to Lamp(Tandem): No Tandem
  • Max Dist.Ball to Lamp(Through): Any = 4'
  • Wire Gauge: 18AWG
  • Max Dist. Ball to Lamp(Remote): No Remote
  • Control Wire Gauge: 18AWG
  • Wire Length by Color: No wires

System Chars On Driver Level

  • Rated Lamp Watts: 54W

Temperature Characteristics

  • T-case maximum: 70 C

Documents

Leaflets

Other Downloads

Overview

UPC 78108713215
Product Description The Mark 7 010V series of dimmable electronic ballasts offer maximum versatility by incorporating separate control leads for use with a wide array of controllers, including occupancy sensors, daylight harvesting controls, and building management systems from more than 40 manufacturers. When paired with linear fluorescent and 4-pin compact fluorescent lamps, these ballasts optimize the benefits of such popular sustainable lighting techniques as daylight harvesting, occupancy sensing, and load shedding to satisfy the need for an affordable, flexible and versatile controllable lighting solution.
GTiN 00781087132159
Length 16.34 in
Width 1.18 in
Applications Lighting Luminaire Component
Height 1.00 in
Weight 1 LB
Wire Size 18 AWG
Wire Type Solid
Frequency 50/60 Hz
Family Brand Name Philips Lighting
Lamp Type F54T5HO
Number of Lamps 2
Ballast Type Dimmable Fluorescent
Housing Material Metal
Power Rating 54 WTT
Start Type PROGRAMMED START
Power Factor 0.98
Ballast Factor 1
Thermal Protection CLASS P
Lamp Wattage 54 W
Sub Brand Mark 7
Voltage 120-277 Volt
Input Voltage 120/277 V
