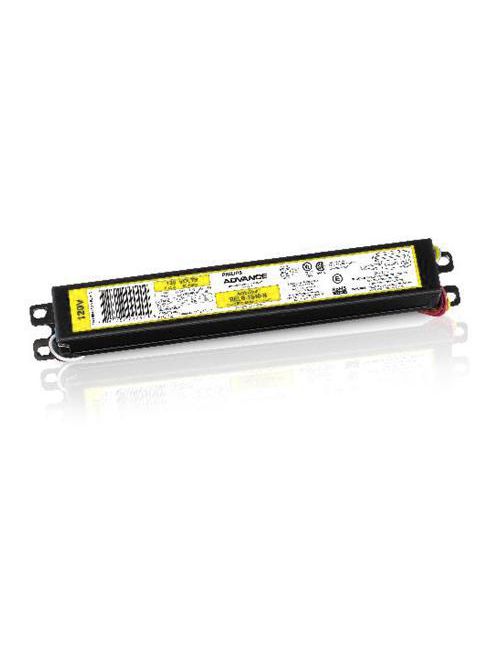

Advance RELB2S40N35I 120 VAC 60 Hz 40 W 2-Lamp T12 Electronic Ballast

idw

Product Data

• Product number: RELB2S40N35I
• Short product name: ELE BALLAST (2) F40T12 120V
• Bar code on pack: 781087090428
• eop_net_weight_pp: 0.341 kg
• Full product name: ELE BALLAST (2) F40T12 120V
• Bar code on case: 30781087090429
• Pieces per Sku: 1
• Skus/Case: 10
• Logistics code(s): 913701218101

General Characteristics

• Suitable for Outdoor use?: Yes
• Number of Lamps: 1/2 piece
• Starting Method: Rapid Start
• Input Current (Operating): 0.62 A
• Housing: N
• Housing Dimensions: 9.5" x 1.3" x 1.0"
• Base Model: RELB2S40N
• Family Name: AmbiStar
• Ballast Type: Electronic Fluorescent
• Lamp Type: F40T12
• Line Frequency: 60 Hz
• Input Voltage: 120 V
• Housing Material: Metal

Approval & Application Chars

• EMC Immunity: FCC Consumer
• Energy Star: Yes
• UL Listed: Yes
• NEMA Premium: No
• UL Recognized: No
• Circle E logo: Yes
• SASO Certificate: No
• CSA E: Yes
• Approbation Marks: UL, CSA, DOE, CSA-E, RoHS
• FIDE Certificate: No
• CEE Rated: No
• RoHS Compliant: Yes
• CSA certificate: Yes
• CEC Listing: Yes
• NOM certificate: No
• DOE: Yes
• cUL certificate: No

Operating Characteristics

• Power Factor: 0.98
• Ignition time: 1 s
• Input Power Gear: 72 W
• Lamp Current Crest Factor: 1.7 -
• Ballast Efficacy Factor: 1.18 -
• Ballast factor: 0.85 -
• Sound Rating: A
• Max THD: 20 %
• Automatic restart: Yes

Product Dimensions

• Height C1: 1.00 in
• Width B1: 1.30 in
• Length A1: 9.50 in
• Length A2: 8.90 in

Wiring Characteristics

• Lamp Connection: Series
• Max Dist. Ball to Lamp(Tandem): Red = 10'
• Wire Length by Color: See data sheet
• Wire Striplength: 0.50/0.375 mm
• Color input terminals: No terminals
• Connector type: No connector
• Max Dist.Ball to Lamp(Through): Red = 10'
• Allowed Wiring Config(Remote): Yes
• Max Dist. Ball to Lamp(Remote): 20'
• Wire Type: Solid
• Allowed Wiring Config(Tandem): Yes
• Wire Gauge: 18AWG
• Allowed Wiring Config(Through): Yes
• Color output terminals: No terminals

System Chars On Driver Level

• Rated Lamp Watts: 40W

Temperature Characteristics

• T-case maximum: 70 C
