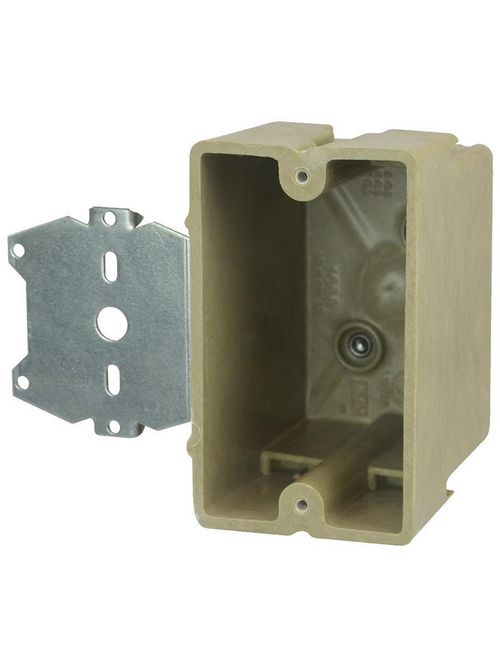

Allied Moulded Products 1096-Z4 3 x 2-1/4 x 3-3/4 Inch 18 In 1-Gang 1/2 Inch Offset Switch/Receptacle Outlet Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$161.05/c (100 ea)
Usually ships within 16 to 26 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # 1096-Z4
Capital Electric Part # 24971

Features

Machine tapped device holes, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures

Specifications

  • Brand: fiberglassBOX
  • Catalog #: 1096-Z4
  • Height: 3-13/16 in.
  • Width: 2-1/4 in.
  • Depth: 3 in.
  • Volume: 18 cu. in.
  • Type of Installation: New Work
  • Wall Box
  • Number of Gangs: 1
  • Carton Quantity: 50
  • Carton Weight: 25 lb.
  • UPC: 085339244066
  • UNSPSC: 39121308
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Stud mount "Z" hanger bracket with 1/2" offset
  • Additional Materials: Galvanized steel brackets and plated carbon steel fasteners

Application

New work residential construction stud face mounted 2 HR fire resistive walls & ceilings

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 3 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

UPC 08533924406
Product Description 18 Cu. In. single gang electrical box for use with nonmeatllic sheathed cable - Machine tapped device holes, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - New work residential construction stud face mounted 2 HR fire resistive walls & ceilings - Fiberglass reinforced polyester - thermoset box with galvanized steel bracket - Size: D=3", W=2 1/4", H=3 13/16" - Mounted with stud mount "Z" hanger bracket with 1/2" offset
GTiN 00085339244066
Width 2-1/4 in
Size D=3", W=2 1/4", H=3 13/16"
Color Beige,Tan
Type Single Gang Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Non-Conductive,Non-Metallic
Material Fiberglass Reinforced Polyester,Galvanized Steel
Applications New work residential construction stud face mounted 2 HR fire resistive walls & ceilings
Mounting Type Stud Mount "Z" Hanger Bracket With 1/2" Offset
Depth 3 in
Height 3 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Injection Molded
Number of Gangs 1 Gang
Cable Entry Four "no Tools" Knockouts
Sub Brand FIBERGLASSBOX
