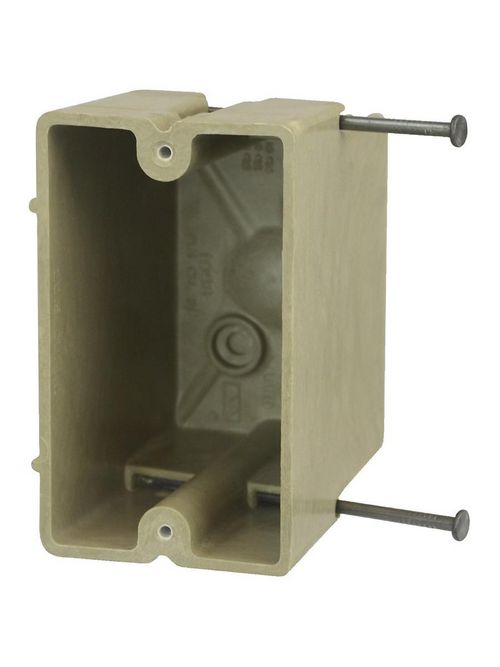

Allied Moulded Products 1098-N 3-1/4 x 2-1/4 x 3-3/4 Inch 20.5 In 1-Gang Fiberglass Switch/Receptacle Outlet Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$66.36/c (100 ea)
In Stock | 1 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # 1098-N
Capital Electric Part # 5873

Features

Machine tapped device holes, offset gauge marks, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures

Specifications

  • Brand: fiberglassBOX
  • Catalog #: 1098-N
  • Height: 3-13/16 in.
  • Width: 2-1/4 in.
  • Depth: 3-1/4 in.
  • Volume: 20.5 cu. in.
  • Type of Installation: New Work
  • Wall Box
  • Number of Gangs: 1
  • Carton Quantity: 100
  • Carton Weight: 34 lb.
  • UPC: 085339250012
  • UNSPSC: 39121308
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Angled mid nails
  • Additional Materials: Carbon steel fasteners

Application

New work residential construction 2 HR fire resistive walls & ceilings

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 3 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

UPC 08533925001
Product Description 20.5 Cu. In. single gang electrical box for use with nonmeatllic sheathed cable - Machine tapped device holes, offset gauge marks, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - New work residential construction 2 HR fire resistive walls & ceilings - Fiberglass reinforced polyester - thermoset box - Size: D=3 1/4", W=2 1/4", H=3 13/16" - Mounted with angled mid nails
GTiN 00085339250012
Width 2-1/4 in
Size D=3 1/4", W=2 1/4", H=3 13/16"
Color Beige,Tan
Type Single Gang Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material Fiberglass Reinforced Polyester
Applications New work residential construction 2 HR fire resistive walls & ceilings
Mounting Type Angled Mid Nails
Depth 3 in
Height 3 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Injection Molded
Number of Gangs 1 Gang
Cable Entry Knockouts
Sub Brand FIBERGLASSBOX
