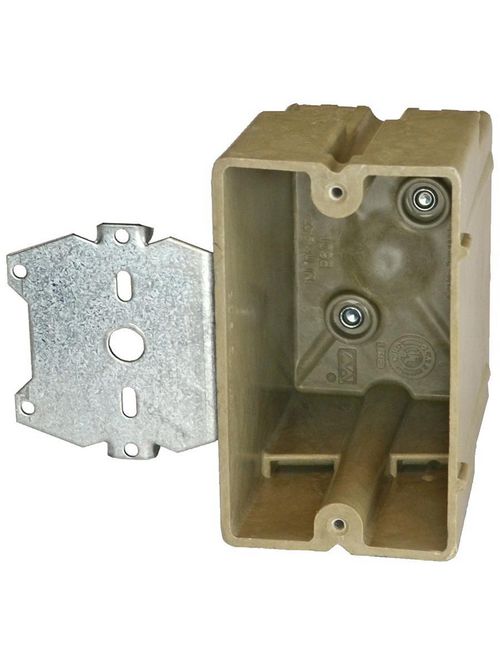

Allied Moulded Products 1098-Z2 3-1/4 x 2-1/4 x 3-3/4 Inch 20.5 In 1-Gang Fiberglass Switch/Receptacle Outlet Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$156.16/c (100 ea)
In Stock | 470 available at 11 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # 1098-Z2
Capital Electric Part # 6110

Features

Machine tapped device holes, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures

Specifications

  • Brand: fiberglassBOX
  • Catalog #: 1098-Z2
  • Height: 3-13/16 in.
  • Width: 2-1/4 in.
  • Depth: 3-1/4 in.
  • Volume: 20.5 cu. in.
  • Type of Installation: New Work
  • Wall Box
  • Number of Gangs: 1
  • Carton Quantity: 50
  • Carton Weight: 28 lb.
  • UPC: 085339250302
  • UNSPSC: 39121308
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Stud mount "Z" hanger bracket with 1/4" offset
  • Additional Materials: Galvanized steel brackets and plated carbon steel fasteners

Application

New work residential construction stud face mounted 2 HR fire resistive walls & ceilings

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 3 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
  • Distance between boxes in adjacent cavities may be reduced to 5 ½ inches

Categories

Overview

UPC 08533925030
Product Description 20.5 Cu. In. single gang electrical box for use with nonmeatllic sheathed cable - Machine tapped device holes, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - New work residential construction stud face mounted 2 HR fire resistive walls & ceilings - Fiberglass reinforced polyester - thermoset box with galvanized steel bracket - Size: D=3 1/4", W=2 1/4", H=3 13/16" - Mounted with stud mount "Z" hanger bracket with 1/4" offset
GTiN 00085339250302
Width 2-1/4 in
Size D=3 1/4", W=2 1/4", H=3 13/16"
Color Beige,Tan
Type Single Gang Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Non-Conductive,Non-Metallic
Material Fiberglass Reinforced Polyester,Galvanized Steel
Applications New work residential construction stud face mounted 2 HR fire resistive walls & ceilings
Mounting Type Stud Mount "Z" Hanger Bracket With 1/4" Offset
Depth 3 in
Height 3 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Injection Molded
Number of Gangs 1 Gang
Cable Entry Four "no Tools" Knockouts
Sub Brand FIBERGLASSBOX
