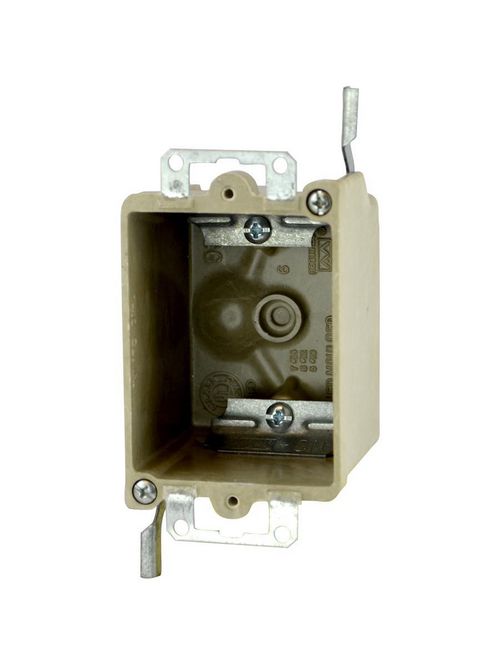

Allied Moulded Products 9331-EWC2 2-1/2 x 2-3/8 Inch 3-1/4 Inch 14 In 1-Gang Fiberglass Switch/Receptacle Outlet Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$296.23/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # 9331-EWC2
Capital Electric Part # 206258

Features

Machine tapped device holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures

Specifications

  • Brand: fiberglassBOX
  • Catalog #: 9331-EWC2
  • Height: 3-1/4 in.
  • Width: 2-3/8 in.
  • Depth: 2-1/2 in.
  • Volume: 14 cu. in.
  • Type of Installation: Old Work
  • Wall Box
  • Number of Gangs: 1
  • Carton Quantity: 100
  • Carton Weight: 33 lb.
  • UPC: 085339385103
  • UNSPSC: 39121308
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Metal wing brackets/metal ears wall compression

Additional Materials

  • Galvanized steel brackets and plated carbon steel fasteners
  • Plated carbon steel clamp and fasteners

Application

Old work residential construction 2 HR fire resistive walls and ceilings

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 3 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

UPC 08533938510
Product Description 14.0 Cu. In. Single gang electrical box for use with nonmeatllic sheathed cable - Machine tapped device holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - Old work residential construction 2 HR fire resistive walls and ceilings - Fiberglass reinforced polyester - thermoset box - Size: D=2 1/2", W=2 3/8", H=3 1/4" - Mount with Metal wing brackets/metal ears wall compression - Two metal wire clamps factory installed
GTiN 00085339385103
Width 2-3/8 in
Size D=2 1/2", W=2 3/8", H=3 1/4"
Color Beige,Tan
Type Single Gang Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material Fiberglass Reinforced Polyester
Applications Old work residential construction 2 HR fire resistive walls and ceilings
Mounting Type Metal Wing Brackets/metal Ears Wall Compression
Depth 2-1/2 in
Height 3 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Injection Molded
Number of Gangs 1 Gang
Cable Entry Knockouts,Wire Clamps
Sub Brand FIBERGLASSBOX
