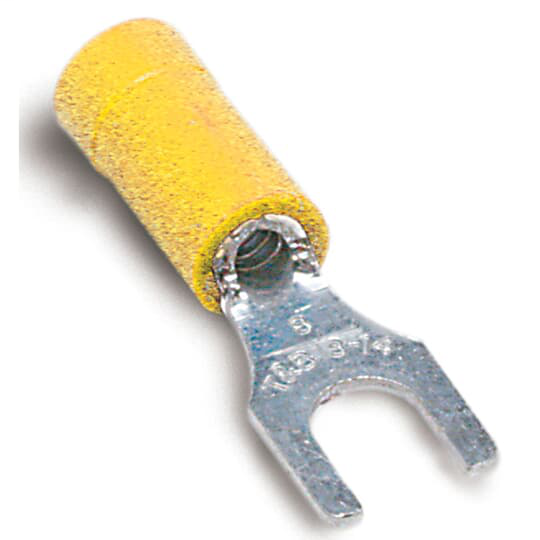

Thomas & Betts 10RC-10F 12 to 10 AWG #10 Stud Yellow Electrotinned Copper Vinyl Insulated Fork Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$110.25/c (100 ea)
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 10RC-10F
Capital Electric Part # 23261

Specifications

Ordering

  • EAN: 5414363136200
  • Customs Tariff Number: 8536904000

Dimensions

  • Product Net Weight: .015 lb6.803 g

Container Information

  • Package Level 1 Units: 50 piece
  • Package Level 2 Units: 250 piece
  • Package Level 2 Width: 9.4 in239 mm
  • Package Level 2 Height: 8.8 in224 mm
  • Package Level 2 Depth / Length: 15 in381 mm
  • Package Level 3 Units: 2500 piece
  • Package Level 3 Width: 7.2 in183 mm
  • Package Level 3 Height: 8.89 in226 mm
  • Package Level 3 Depth / Length: 10.6 in269 mm

Additional Information

  • Brand / Label: Sta-Kon
  • Color: Yellow
  • Material: Copper
  • Number of Batteries: 0
  • Product Name: ELECTRICAL TERMINAL
  • Product Type: Vinyl Insulated Fork Terminal
  • Special Functions: These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wires flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
  • Standards: UL E9809
  • UPC: 786210800431
  • Voltage Rating: 600 V
  • Wire Size: 12-10 AWG

Classifications

  • ETIM 6: EC001052 - Solderless copper terminals for copper conductors
  • ETIM 7: EC001052 - Solderless copper terminals for copper conductors
  • UNSPSC: 39121432
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4603 >> Electrical terminals

Overview

UPC 78621080043
Product Description Vinyl-Insulated Fork Terminal, Length 1.09 Inches, Width .38 Inches, Maximum Insulation .210, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
GTiN 05414363136200
Finish Tin Plated
Color Yellow
Type Short Sleeve
Barrel Type Brazed Seam
Material Copper
Stud Size #10
Conductor Size 12-10 AWG
Wire Size 12-10 AWG
Family Brand Name Thomas & Betts
Insulation Material PVC
Used With Round Conductors
Sub Brand Sta-Kon
Voltage 600 Volt
Thickness .04 in
Insulation Type Insulated Vinyl
Terminal Type RC
Standard UL E9809
Temperature Rating 105 C
Flamability Class Rated V-0 Per UL94
