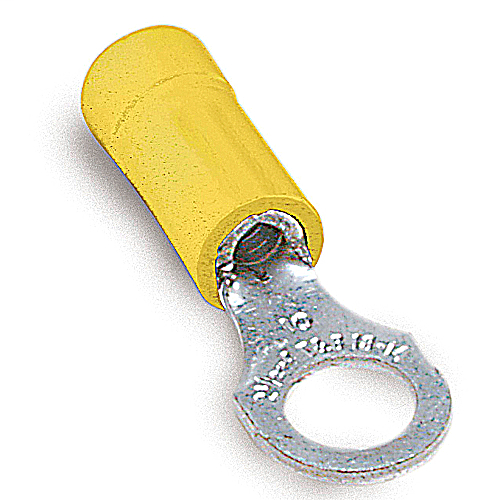

Thomas & Betts 10RC-14 12 to 10 AWG 1/4 Inch Stud Yellow Electrotinned Copper Vinyl Insulated Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$133.61/c (100 ea)
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 10RC-14
Capital Electric Part # 20665

Features

  • These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.

General

  • Finish: Electro Tin-Plated
  • Insulation Type: Insulated Vinyl
  • Wire Range: 12-10
  • Stud Size: 1/4
  • Color: Yellow
  • Terminal Series: RC
  • Material: Copper

Dimension Information

  • Stock Thickness: .04
  • C (inches): .27
  • A (inches): 1.16
  • M (inches): .90
  • B (inches): .50
  • Maximum Insulation (inches): .210

Specifications

  • Temperature Rating: 105°C
  • Flammability Rating: UL 94 V-0
  • Voltage Rating: 600V

Tooling

  • Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003
  • Recommended Tool: ERG4001

Packaging

  • Alternate Package Qty: RC717
  • Order Multiple: 50
  • Package Width: 10.3
  • T&B Weight Per UOM: 6.25 lbs. per 1000
  • Package Height: 8.1
  • Inner Package: 50
  • Package Type: Standard
  • T&B Sold in UOM: Each
  • Outer Package: 250
  • Package Length: 12.1

Application Support

Certifications

  • CSA
  • RoHS Compliance: Yes
  • UL

Overview

UPC 78621080046
Product Description Vinyl-Insulated Ring Terminal, Length 1.16 Inches, Width .50 Inches, Maximum Insulation .210, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
GTiN 05414363136224
Finish Tin Plated
Color Yellow
Type Short Sleeve
Barrel Type Brazed Seam
Material Copper
Stud Size 1/4 in
Conductor Size 12-10 AWG
Wire Size 12-10 AWG
Family Brand Name Thomas & Betts
Insulation Material PVC
Used With Round Conductors
Sub Brand Sta-Kon
Voltage 600 Volt
Thickness .04 in
Insulation Type Insulated Vinyl
Terminal Type RC
Temperature Rating 105 C
Flamability Class Rated V-0 Per UL94
