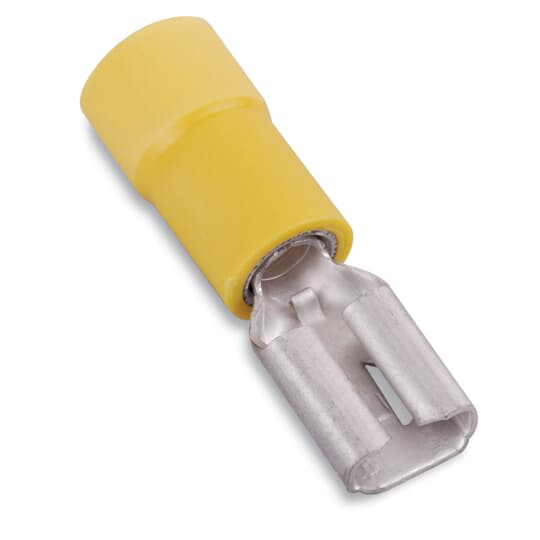

Thomas & Betts 10RC-250F 12 to 10 AWG Yellow Electrotinned Brass Vinyl Insulated Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
$146.77/c (100 ea)
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 10RC-250F
Capital Electric Part # 102189

Specifications

Ordering

  • EAN: 5414363136255
  • Customs Tariff Number: 8536904000

Dimensions

  • Product Net Weight: .006 lb2.721 g

Container Information

  • Package Level 1 Units: 50 piece
  • Package Level 2 Units: 250 piece
  • Package Level 2 Width: 9.3 in236 mm
  • Package Level 2 Height: 9 in229 mm
  • Package Level 2 Depth / Length: 15 in381 mm
  • Package Level 3 Units: 2500 piece
  • Package Level 3 Width: 7.3 in185 mm
  • Package Level 3 Height: 10.7 in272 mm
  • Package Level 3 Depth / Length: 8.8 in224 mm

Additional Information

  • Brand / Label: Sta-Kon
  • Color: Yellow
  • Insulation Material: Vinyl
  • Material: Brass
  • Number of Batteries: 0
  • Product Name: ELECTRICAL TERMINAL
  • Product Type: Vinyl Insulated Female Disconnect
  • Special Functions: Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
  • Standards: UL E66716
  • Surface Finishing: Tin Plated
  • UPC: 786210800523

Classifications

  • ETIM 6: EC000516 - Round or flat plug/receptacle
  • ETIM 7: EC000516 - Round or flat plug/receptacle
  • UNSPSC: 39121447
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4667 >> Wire terminal disconnect

Overview

UPC 78621080052
Product Description Vinyl-Insulated Female Disconnect, Length 1.03 Inches, Width .29 Inches, Maximum Insulation .250, Tab Size .250x.032, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
GTiN 05414363136255
Length 1.03 in
Finish Electro-Tin Plated
Color Yellow
Type Short Sleeve
Material Brass
Conductor Size 10-12 AWG
Family Brand Name Thomas & Betts
Insulation Material PVC
Used With Round Conductors
Sub Brand Sta-Kon
Standard UL E66716
