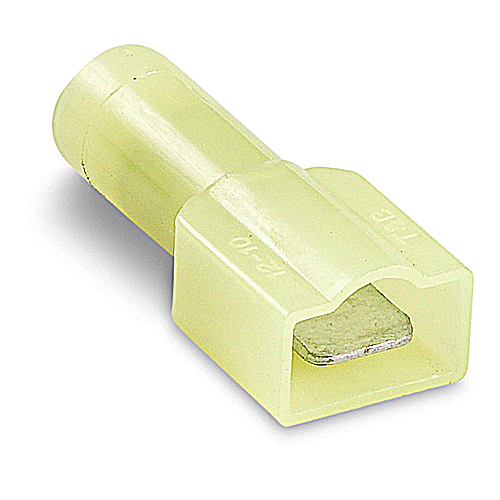

Thomas & Betts 10RC-251T 12-10 AWG Wire Range .250 Inch Tab Full Insulated Nylon Male Tab
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$158.29/c (100 ea)
Usually ships within 6 to 8 Days
ea
Adding...
Order in multiples of 25 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 10RC-251T
Capital Electric Part # 94242

General

  • Tab Size: .250 x .032
  • Finish: Electro Tin-Plated
  • Color: Yellow
  • Terminal Series: RC
  • Style: Male - 250 Series
  • Material: Brass
  • Wire Range: 12-10
  • Insulation Type: Fully Insulated Nylon

Dimension Information

  • B (inches): .45
  • A (inches): 1.17
  • Maximum Insulation (inches): .250
  • Stock Thickness: .04

Specifications

  • Voltage Rating: 300V
  • Flammability Rating: UL 94 V-0
  • Temperature Rating: 105°C

Tooling

  • Recommended Tool: ERG4001
  • Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003

Packaging

  • Package Height: 8.8
  • Alternate Package Qty: RC25177
  • T&B Weight Per UOM: 5 lbs. per 1000
  • Package Type: Standard
  • Package Width: 9.4
  • Package Length: 15
  • T&B Sold in UOM: Each
  • Outer Package: 125
  • Inner Package: 25
  • Order Multiple: 25

Application Support

Certifications


  • RoHS Compliance: Yes (exemption 06)
  • CSA
  • UL

Overview

UPC 78621086974
Product Description Nylon-Insulated Male Tab, Length 1.17 Inches, Width .45 Inches, Maximum Insulated .210, Tab Size .250x.032, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
GTiN 05414363935742
Finish Electro-Tin Plated
Color Yellow
Voltage 300 Volt
Type Long Sleeve
Insulation Type Nylon,Polyamide
Material Brass
Conductor Size 10-12 AWG
Temperature Rating 105 C
Family Brand Name Thomas & Betts
Insulation Material Nylon
Used With Round Conductors
Sub Brand Sta-Kon
