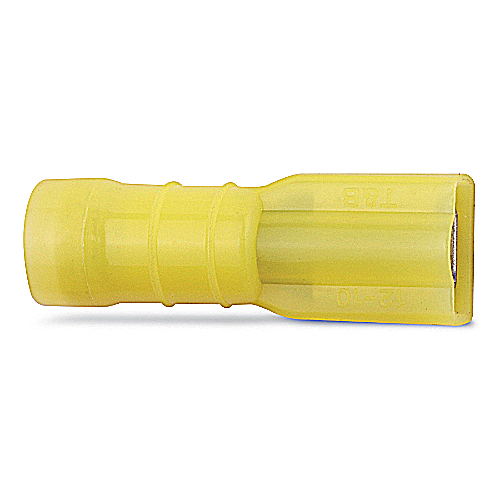

Thomas & Betts 10RC-2577 12-10 AWG Wire Range .250 Inch Tab Size Fully Insulated Nylon Female Flag Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$141.94/c (100 ea)
In Stock | 350 available at 2 locations
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 10RC-2577
Capital Electric Part # 99482

Features

  • Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.

General

  • Tab Size: .250 x .032
  • Material: Brass
  • Wire Range: 12-10
  • Disconnect Type: Female - 250 Series
  • Finish: Electro Tin-Plated
  • Insulation Type: Fully Insulated Nylon
  • Color: Yellow
  • Terminal Series: RC

Dimension Information

  • B (inches): .38
  • Stock Thickness: .04
  • Maximum Insulation (inches): .225
  • A (inches): 1.04

Specifications

  • Flammability Rating: UL 94 V-2
  • Temperature Rating: 105°C
  • Voltage Rating: 600V

Tooling

  • Recommended Tool: ERG4001
  • Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003

Packaging

  • Inner Package: 50
  • Outer Package: 250
  • Order Multiple: 50
  • Package Width: 10.25
  • T&B Sold in UOM: Each
  • Package Type: Standard
  • Alternate Package Qty: RC2573
  • Package Height: 8
  • Package Length: 12.25
  • T&B Weight Per UOM: 7.5 lbs. per 1000

Application Support

Certifications

  • CSA
  • RoHS Compliance: Yes (exemption 06)
  • UL

Categories

Overview

UPC 78621083931
Product Description Nylon Fully Insulated Female Disconnect, Length 1.04 Inches, Width .38 Inches, Maximum Insulation .225, Tab Size .250x.032, Wire Range #12-#10 AWG, Color Yellow, Brass, Tin Plated
GTiN 05414363935735
Finish Electro-Tin Plated
Color Yellow
Voltage 600 Volt
Type Long Sleeve
Insulation Type Polyamide,Nylon
Material Brass
Conductor Size 10-12 AWG
Temperature Rating 105 C
Family Brand Name Thomas & Betts
Insulation Material Nylon
Used With Round Conductors
Sub Brand Sta-Kon
