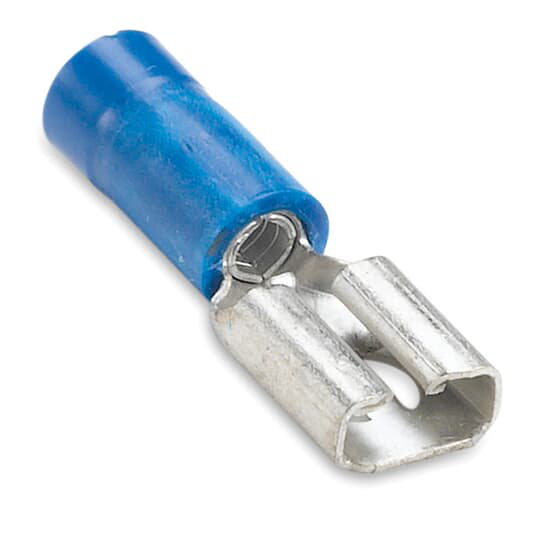

Thomas & Betts 14RB-250F 16 to 14 AWG Blue Electrotinned Brass Vinyl Insulated Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$117.85/c (100 ea)
Usually ships within 6 to 8 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 14RB-250F
Capital Electric Part # 102188

Specifications

Ordering

  • EAN: 5414363131694
  • Customs Tariff Number: 8536904000

Dimensions

  • Product Net Weight: .004 lb1.814 g

Container Information

  • Package Level 1 Units: 100 piece
  • Package Level 1 Width: 1.25 in32 mm
  • Package Level 1 Height: 2.5 in64 mm
  • Package Level 1 Depth / Length: 3.5 in89 mm
  • Package Level 2 Units: 500 piece
  • Package Level 2 Width: 9.4 in239 mm
  • Package Level 2 Height: 8.9 in226 mm
  • Package Level 2 Depth / Length: 15 in381 mm
  • Package Level 3 Units: 5000 piece
  • Package Level 3 Width: 9.875 in251 mm
  • Package Level 3 Height: 12 in305 mm
  • Package Level 3 Depth / Length: 7.5 in191 mm

Additional Information

  • Brand / Label: Sta-Kon
  • Color: Blue
  • Insulation Material: Vinyl
  • Material: Brass
  • Number of Batteries: 0
  • Product Name: ELECTRICAL TERMINAL
  • Product Type: Vinyl Insulated Female Disconnect
  • Special Functions: Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
  • Standards: UL E66716
  • Surface Finishing: Tin Plated
  • UPC: 786210800776

Classifications

  • ETIM 6: EC000516 - Round or flat plug/receptacle
  • ETIM 7: EC000516 - Round or flat plug/receptacle
  • UNSPSC: 39121447
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4667 >> Wire terminal disconnect

Overview

UPC 78621080077
Product Description Vinyl-Insulated Female Disconnect, Length 0.96 Inch, Width 0.29 Inch, Max Insulation 0.17, Tab Size 0.25x.032, Wire Range #16-14 AWG, Color Blue, Copper, Tin Plated
GTiN 05414363131694
Finish Electro-Tin Plated
Color Blue
Type Short Sleeve
Material Brass
Conductor Size 14-16 AWG
Family Brand Name Thomas & Betts
Insulation Material PVC
Used With Round Conductors
Sub Brand Sta-Kon
Voltage 600 Volt
Insulation Type Vinyl
Standard UL E66716
Temperature Rating 105 C
