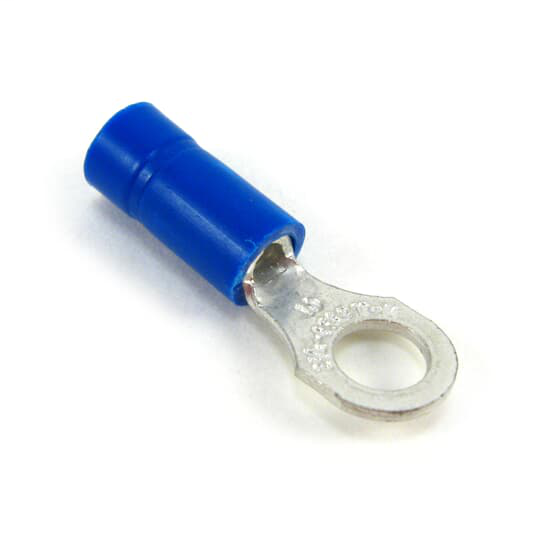

Thomas & Betts 14RB-8 18 to 14 AWG #8 Stud Blue Electrotinned Copper Vinyl Insulated Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$85.22/c (100 ea)
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 14RB-8
Capital Electric Part # 22167

Specifications

Ordering

  • EAN: 5414363138044
  • Customs Tariff Number: 8536904000

Dimensions

  • Product Net Weight: .003 lb1.361 g

Container Information

  • Package Level 1 Units: 100 piece
  • Package Level 2 Units: 500 piece
  • Package Level 2 Width: 9.3 in236 mm
  • Package Level 2 Height: 9 in229 mm
  • Package Level 2 Depth / Length: 15 in381 mm
  • Package Level 3 Units: 5000 piece
  • Package Level 3 Width: 10.2 in259 mm
  • Package Level 3 Height: 8.8 in224 mm
  • Package Level 3 Depth / Length: 7.1 in180 mm

Additional Information

  • Brand / Label: Sta-Kon
  • Color: Blue
  • Material: Copper
  • Number of Batteries: 0
  • Product Name: ELECTRICAL TERMINAL
  • Product Type: Vinyl Insulated Ring Terminal
  • Special Functions: These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point. Brazed seam barrel is serrated to obtain high pull-out value.
  • Standards: UL E9809
  • UPC: 786210800653
  • Voltage Rating: 600 V
  • Wire Size: 18-14 AWG

Classifications

  • ETIM 6: EC001052 - Solderless copper terminals for copper conductors
  • ETIM 7: EC001052 - Solderless copper terminals for copper conductors
  • UNSPSC: 39121432
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4603 >> Electrical terminals

Overview

UPC 78621080065
Product Description Vinyl-Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
GTiN 05414363138044
Finish Tin Plated
Color Blue
Type Short Sleeve
Barrel Type Brazed Seam
Material Copper
Stud Size #8
Conductor Size 18-14 AWG
Wire Size 18-14 AWG
Family Brand Name Thomas & Betts
Insulation Material PVC
Used With Round Conductors
Sub Brand Sta-Kon
Width 9.3 in
Voltage 600 Volt
Thickness .03 in
Insulation Type Insulated Vinyl
Terminal Type RB
Height 9 in
Standard UL E9809
Temperature Rating 105 C
Flamability Class Rated V-0 Per UL94
