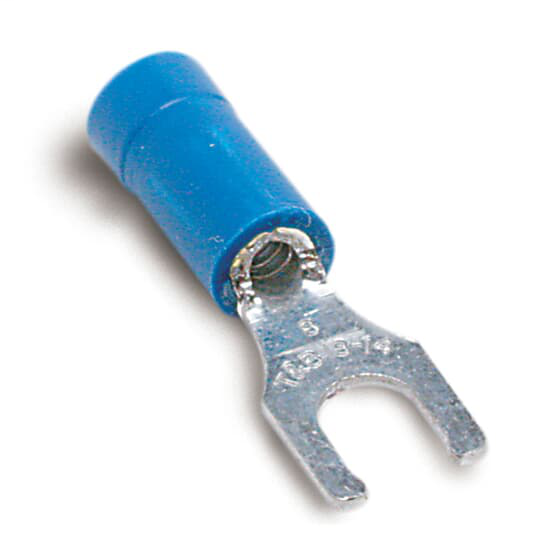

Thomas & Betts 14RB-8FL 18 to 14 AWG #8 Stud Blue Electrotinned Copper Vinyl Insulated Locking Fork Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$94.45/c (100 ea)
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 14RB-8FL
Capital Electric Part # 102185

Specifications

Ordering

  • EAN: 5414363138068
  • Customs Tariff Number: 8536904000

Dimensions

  • Product Net Weight: .015 lb6.803 g

Container Information

  • Package Level 1 Units: 100 piece
  • Package Level 1 Width: 2.25 in57 mm
  • Package Level 1 Height: 2.3 in58 mm
  • Package Level 1 Depth / Length: 6 in152 mm
  • Package Level 2 Units: 500 piece
  • Package Level 2 Width: 9.5 in241 mm
  • Package Level 2 Height: 8.9 in226 mm
  • Package Level 2 Depth / Length: 15 in381 mm
  • Package Level 3 Units: 5000 piece
  • Package Level 3 Width: 7 in178 mm
  • Package Level 3 Height: 8.6 in218 mm
  • Package Level 3 Depth / Length: 10.4 in264 mm

Additional Information

  • Brand / Label: Sta-Kon
  • Color: Blue
  • Material: Copper
  • Number of Batteries: 0
  • Product Name: ELECTRICAL TERMINAL
  • Product Type: Vinyl Insulated Locking Fork Terminal
  • Special Functions: Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
  • Standards: UL E9809
  • UPC: 786210806549
  • Voltage Rating: 600 V
  • Wire Size: 18-14 AWG

Classifications

  • ETIM 6: EC001052 - Solderless copper terminals for copper conductors
  • ETIM 7: EC001052 - Solderless copper terminals for copper conductors
  • UNSPSC: 39121432
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4603 >> Electrical terminals

Overview

UPC 78621080654
Product Description Vinyl-Insulated Locking Fork Terminal, Length .97 Inches, Width .29 Inches, Maximum Insulation .170, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
GTiN 05414363138068
Finish Tin Plated
Color Blue
Type Locking, Short Sleeve
Material Copper
Stud Size #8
Conductor Size 18-14 AWG
Wire Size 18-14 AWG
Family Brand Name Thomas & Betts
Insulation Material PVC
Used With Round Conductors
Sub Brand Sta-Kon
Width 9-1/2 in
Voltage 600 Volt
Thickness .03 in
Insulation Type Insulated Vinyl
Terminal Type RB
Height 8.9 in
Standard UL E9809
Temperature Rating 105 C
Flamability Class Rated V-0 Per UL94
