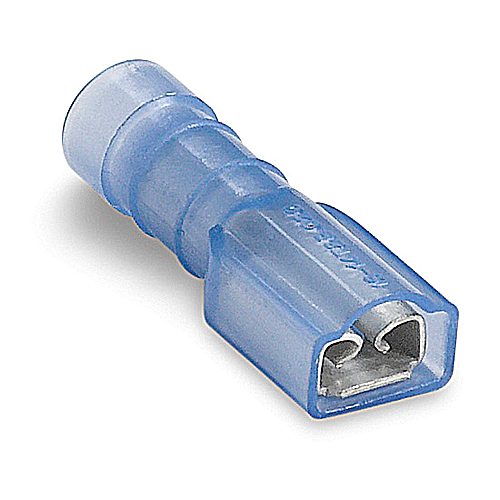

Thomas & Betts 14RBD-18277 16-14 AWG Wire Range .89 Inch Length .187 Inch Tab Size Fully Insulated Nylon Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$129.35/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 14RBD-18277
Capital Electric Part # 84884

Features

  • Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability.

General

  • Color: Blue
  • Insulation Type: Fully Insulated Nylon
  • Disconnect Type: Female - 187 Series
  • Wire Range: 16-14
  • Tab Size: .187 x .020
  • Terminal Series: RBD
  • Finish: Electro Tin-Plated
  • Material: Brass

Dimension Information

  • B (inches): .30
  • A (inches): .89
  • Stock Thickness: .03
  • Maximum Insulation (inches): .170

Specifications

  • Voltage Rating: 600V
  • Temperature Rating: 105°C
  • Flammability Rating: UL 94 V-2

Tooling

  • Recommended Tool: ERG4001
  • Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003

Packaging

  • Inner Package: 100
  • Alternate Package Qty: RBD18277
  • T&B Sold in UOM: Each
  • Order Multiple: 100
  • T&B Weight Per UOM: 3.13 lbs. per 1000
  • Package Type: Standard
  • Outer Package: 500
  • Package Width: 9.3
  • Package Length: 15
  • Package Height: 8.7

Application Support

Certifications

  • RoHS Compliance: Yes (exemption 06)
  • UL
  • CSA

Overview

UPC 78621081853
Product Description Nylon Fully Insulated Female Disconnect, Length .89 Inches, Width .30 Inches, Maximum Insulation .170, Tab Size .187x.020 Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated
GTiN 05414363138099
Finish Electro-Tin Plated
Color Blue
Voltage 600 Volt
Type Long Sleeve
Insulation Type Nylon,Polyamide
Material Brass
Conductor Size 14-16 AWG
Temperature Rating 105 C
Family Brand Name Thomas & Betts
Insulation Material Nylon
Used With Round Conductors
Sub Brand Sta-Kon
