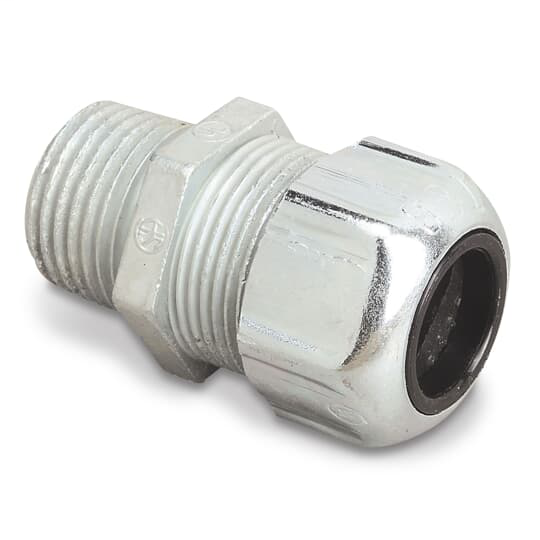

Thomas & Betts 2116-TB 1/2 Inch Liquidtight UF Cable Connector
Product image thumbnail 0
Product image thumbnail 1
$642.69/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 2116-TB
Capital Electric Part # 96513

Specifications

Ordering

  • EAN: 0786210021164
  • Customs Tariff Number: 7907002000

Dimensions

  • Product Net Weight: .14 lb63.492 g

Container Information

  • Package Level 1 Units: 25 piece
  • Package Level 1 Width: 4.5 in114 mm
  • Package Level 1 Height: 3 in76 mm
  • Package Level 1 Depth / Length: 5 in127 mm
  • Package Level 2 Units: 100 piece
  • Package Level 2 Width: 9.9 in251 mm
  • Package Level 2 Height: 4 in102 mm
  • Package Level 2 Depth / Length: 10.9 in277 mm

Additional Information

  • Application: To Connect Service Entrance Cables to a Meter Box or an Enclosure.
  • Brand / Label: T&B
  • Color: Metallic
  • Material: Zinc Die Cast
  • Number of Batteries: 0
  • Product Name: ZINC ELECTRICAL FITTING
  • Product Type: Underground Feeder Cable Connectors
  • Size: 1/2 Inch
  • Special Functions: Neoprene Bushing, Resists Oil and Water; Grips Cable The Full Length of The Bushing Providing Adequate Strain Relief Without Damaging Outer Jacket.
  • Standards: UL E17583, CSA
  • UPC: 786210021164

Classifications

  • ETIM 6: EC000441 - Cable screw gland
  • ETIM 7: EC000441 - Cable gland
  • UNSPSC: 39121431
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4601 >> Cable gland connector

Overview

UPC 78621002116
Product Description 1/2 Inch Service Entrance Cable Connector, 1/2 Inch, Cable Opening 0.235 x 0.500 Inch, Body is Die Cast Zinc, Gland is Steel and Electro Zinc Plated, Retaining Ring is Stainless Steel, Bushing is Neoprene
GTiN 00786210021164
Finish Electro Zinc Plated
Size 1/2 in
Color Metallic
Type Straight
Material Die-Cast Zinc
Applications To Connect Service Entrance Cables to a Meter Box or an Enclosure
Family Brand Name Thomas & Betts
Standard CSA,UL E17583
