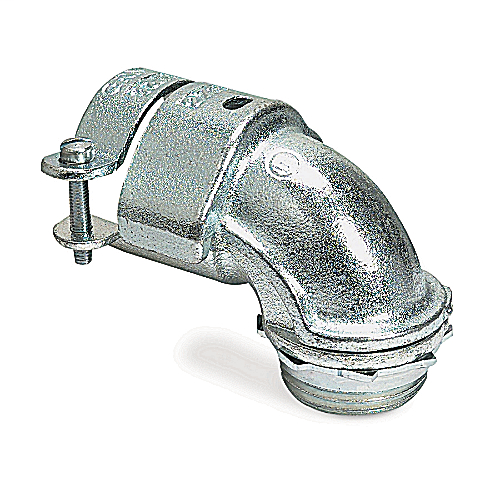

Thomas & Betts 273-TB 1 Inch 90 Degree Squeeze Connector
Product image thumbnail 0
Product image thumbnail 1
$1,701.18/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 273-TB
Capital Electric Part # 435332

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121419 Flex connectors
  • IGCC: 4573 Flex connectors
  • Brand Name: T&B
  • Type: Armored Cable/Flexible Metal Conduit Fittings
  • Special Features: Cap Lifts off by Simply Loosening Screws Part Way, Only Two Screws to Tighten
  • Application: For Use with Armored Cable and Flexible Metal Conduit
  • Standard: UL E23018, CSA 2884
  • Size: 1 Inch
  • Connection: 90 Degree
  • Conductor Range: 1.187 to 1.406 Inch
  • Material: Malleable Iron
  • Finish: Zinc Plated
  • Color: Metallic
  • Insulation: No

European Specifications (ETIM)

  • ETIM: EC001180 Screw connection for protective metallic hose
  • Nominal size in inch: 1 inch
  • Model: 90°-elbow
  • Revolving thread: N
  • Construction type: External thread
  • Connection type screw connection to housing: Other
  • Material housing: Other
  • Thread length: 61.91mm
  • Approved in combination with protective conduit CSA: Y
  • Approved in combination with protective conduit UL: Y

Packaging

  • Inner Quantity: 5
  • Inner Dimensions (inches): 6x4x4
  • Outer Quantity: 25
  • Outer Dimensions (inches): 21x11.3x5.8
  • Weight Uom: 61.5 lbs. per 100

Overview

UPC 78621000273
Product Description Squeeze Connector, 90 Degree Bend, Trade Size 1 Inch, Knockout Size 1 Inch, Cable Range 1.187 to 1.406 Inch, Malleable Iron
GTiN 05415022258097
Finish Zinc-Plated
Size 1 Inch
Color Metallic
Type Armored Cable/Flexible Metal Conduit Fittings
Material Iron
Applications For Use with Armored Cable and Flexible Metal Conduit
Construction Type External Thread
Connection Type 90 Degree
Thread Length 61.91 mm
Family Brand Name Thomas & Betts
Insulated? No
Housing Material Other
Box Quantity 25
TC Connection 90 Degree
