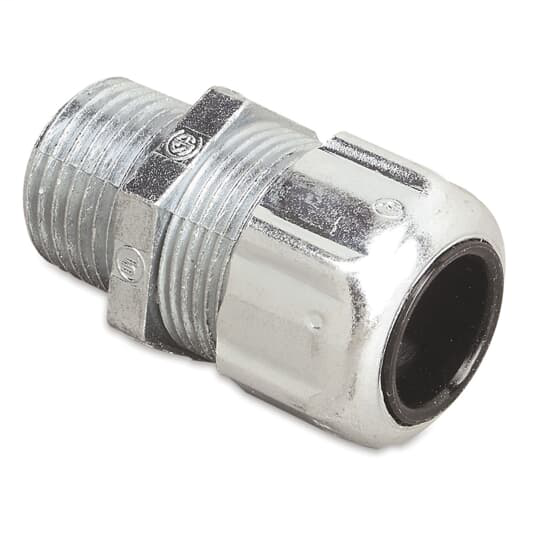

Thomas & Betts 2942 Steel Strain Relief Connector
Product image thumbnail 0
Product image thumbnail 1
$993.20/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 2942
Capital Electric Part # 108032

Specifications

Ordering

  • EAN: 5414363101864
  • Customs Tariff Number: 7907002000

Dimensions

  • Product Net Weight: .375 lb170.068 g

Container Information

  • Package Level 1 Units: 10 piece
  • Package Level 1 Width: 4.5 in114 mm
  • Package Level 1 Height: 4 in102 mm
  • Package Level 1 Depth / Length: 6 in152 mm
  • Package Level 2 Units: 100 piece
  • Package Level 2 Width: 13 in330 mm
  • Package Level 2 Height: 4.25 in108 mm
  • Package Level 2 Depth / Length: 24.5 in622 mm

Additional Information

  • Application: Provide a Means for Passing a Cord Cable Into an Enclosure Through a Bulkhead
  • Brand / Label: T&B
  • Color: Metallic
  • Material: Steel
  • Number of Batteries: 0
  • Product Name: ZINC ELEC. CONDUIT FITTING
  • Product Type: Cord Connectors-Straight
  • Size: 1 Inch
  • Special Functions: Extended Range with Superior Strain Relief
  • Standards: UL E13938, CSA 52391
  • UPC: 786210029429

Classifications

  • ETIM 6: EC000441 - Cable screw gland
  • ETIM 7: EC000441 - Cable gland
  • UNSPSC: 39121431
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4601 >> Cable gland connector

Overview

UPC 78621002942
Product Description Liquidtight Strain Relief Connector, 1 Inch, Straight, Cord Range 0.700 to 0.950 Inch, Throat Diamter 31/32 Inch, Steel Body, Glandnut, and Grip, Rubber Bushing
GTiN 05414363101864
Size 1 in
Type Cord Connectors-Straight
Material Steel
Applications Provide a Means for Passing a Cord Cable Into an Enclosure Through a Bulkhead
Family Brand Name Thomas & Betts
Color Metallic
Standard UL E13938,CSA 52391
