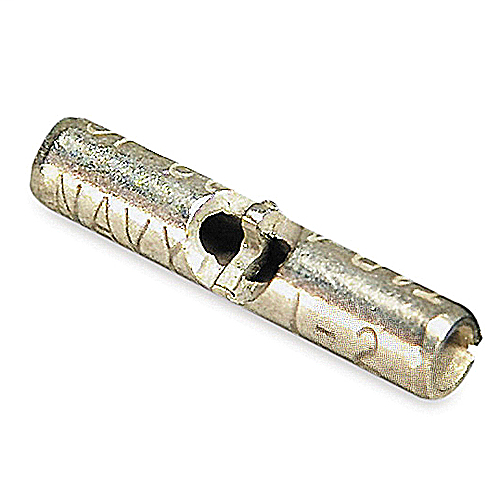

Thomas & Betts 2B-14 16 to 14 AWG 0.62 Inch Metallic Electrotinned Copper Non-Insulated Butt Splice
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$73.56/c (100 ea)
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 2B-14
Capital Electric Part # 23910

General

  • Wire Range: 16-14
  • Color: Metallic
  • Terminal Series: B
  • Material: Copper
  • Finish: Electro Tin-Plated
  • Insulation Type: Non-Insulated

Dimension Information

  • Stock Thickness: .03
  • A (inches): .62
  • B (inches): .16

Specifications

  • Flammability Rating: UL 94 V-0
  • Voltage Rating: 600V
  • Temperature Rating: 150°C

Tooling

  • Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002
  • Recommended Tool: ERG4002, ERG4005

Packaging

  • Package Type: Standard
  • Package Width: 9.4
  • T&B Sold in UOM: Each
  • Inner Package: 100
  • Outer Package: 500
  • Package Length: 15.1
  • Alternate Package Qty: BB2
  • Package Height: 9
  • T&B Weight Per UOM: 15 lbs. per 1000
  • Order Multiple: 100

Application Support

Certifications


  • UL
  • RoHS Compliance: Yes
  • CSA

Overview

UPC 78621080004
Product Description Non-Insulated Butt Splice, Length 0.63 Inch, Width 0.16 Inch, Wire Range 18-14 AWG, Copper, Tin Plated, 100 Pack
GTiN 05414363140443
Finish Electro-Tin Plated
Color Metallic
Voltage 600 Volt
Type Non-Insulated Butt Splice
Material Copper
Conductor Size 18-14 AWG
Temperature Rating 150 C
Family Brand Name Thomas & Betts
Contact Material Copper
Overall Length 0.63 in
Sub Brand Sta-Kon
