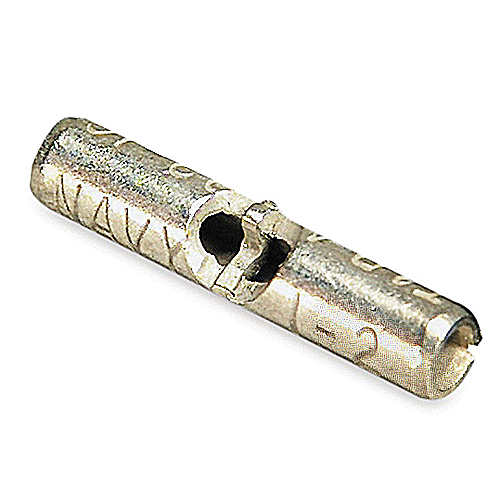

Thomas & Betts 2C-10 12 to 10 AWG 0.72 Inch Metallic Electrotinned Copper Non-Insulated Butt Splice
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$102.50/c (100 ea)
In Stock | 500 available at 1 location
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 2C-10
Capital Electric Part # 12973

General

  • Color: Metallic
  • Finish: Electro Tin-Plated
  • Material: Copper
  • Terminal Series: C
  • Insulation Type: Non-Insulated
  • Wire Range: 12-10

Dimension Information

  • B (inches): .22
  • A (inches): .72
  • Stock Thickness: .04

Specifications

  • Voltage Rating: 600V
  • Flammability Rating: UL 94 V-0
  • Temperature Rating: 150°C

Tooling

  • Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002
  • Recommended Tool: ERG4002, ERG4005

Packaging

  • T&B Weight Per UOM: 5.63 lbs. per 1000
  • Package Height: 8.8
  • Order Multiple: 50
  • T&B Sold in UOM: Each
  • Package Width: 9.5
  • Alternate Package Qty: CC2
  • Outer Package: 250
  • Inner Package: 50
  • Package Type: Standard
  • Package Length: 15

Application Support

Certifications

  • CSA
  • UL
  • RoHS Compliance: Yes

Overview

UPC 78621080007
Product Description Non-Insulated Butt Splice, Length 0.72 Inch, Width 0.22 Inch, Wire Range 12-10 AWG, Copper, Tin Plated
GTiN 05414363140474
Finish Electro-Tin Plated
Color Metallic
Voltage 600 Volt
Type Non-Insulated Butt Splice
Material Copper
Temperature Rating 150 C
Family Brand Name Thomas & Betts
Contact Material Copper
Overall Length 0.72 in
Sub Brand Sta-Kon
