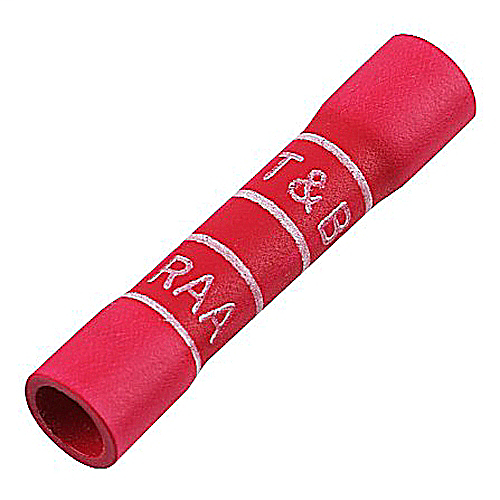

Thomas & Betts 2RA18X 1.1 Inch Length 22-18 AWG Wire Range Expanded Insulated Vinyl Butt Splice
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$87.68/c (100 ea)
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 2RA18X
Capital Electric Part # 10311

Features

  • In butt splices, the wires are butted together and crimped at each end of the splice. These splices are color-coded according to wire size.

General

  • Color: Red
  • Finish: Electro -Tin Plated
  • Insulation Type: Expanded Insulated Vinyl
  • Wire Range: 22-18
  • Material: Copper
  • Terminal Series: RA

Dimension Information

  • Maximum Insulation (inches): .170
  • B (inches): .25
  • Stock Thickness: .03
  • A (inches): 1.13

Specifications

  • Temperature Rating: 105°C
  • Voltage Rating: 600V
  • Flammability Rating: UL 94 V-0

Tooling

  • Recommended Tool: ERG4001
  • Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003

Packaging

  • T&B Sold in UOM: Each
  • Outer Package: 500
  • Order Multiple: 100
  • Package Length: 12.1
  • Alternate Package Qty: RAA217170
  • Package Width: 8.1
  • Inner Package: 100
  • Package Height: 9.89
  • T&B Weight Per UOM: 3.75 lbs. per 1000
  • Package Type: Standard

Application Support

Certifications

Documents

Overview

UPC 78621080719
Product Description Expanded Vinyl-Insulated Butt Splice, Length 1.13 Inches, Width .25 Inches, Maximum Insulation Diameter .170, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated
GTiN 05414363140535
Finish Electro-Tin Plated
Color Red
Voltage 600 Volt
Type Expanded
Insulation Type Expanded Insulated Vinyl
Material Copper
Conductor Size 22-18 AWG
Temperature Rating 105 C
Family Brand Name Thomas & Betts
Contact Material Copper
Sub Brand Sta-Kon
