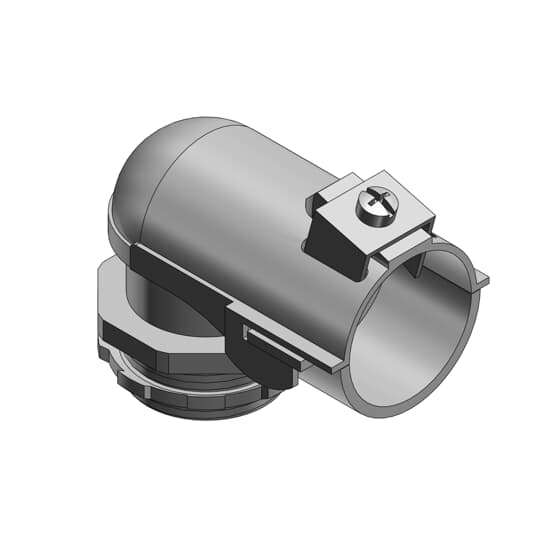

Thomas & Betts 325 3/4 Inch 90 Degree Tite Bite Flex Connector
Product image thumbnail 0
Product image thumbnail 1
$983.18/c (100 ea)
In Stock | 3 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 325
Capital Electric Part # 157181

Specifications

Ordering

  • EAN: 0786210003252
  • Customs Tariff Number: 7307923010

Dimensions

  • Product Net Weight: .28 lb126.984 g

Container Information

  • Package Level 1 Units: 10 piece
  • Package Level 1 Width: 4 in102 mm
  • Package Level 1 Height: 4 in102 mm
  • Package Level 1 Depth / Length: 6 in152 mm
  • Package Level 2 Units: 50 piece
  • Package Level 2 Width: 5.2 in132 mm
  • Package Level 2 Height: 7.1 in180 mm
  • Package Level 2 Depth / Length: 21.6 in549 mm

Additional Information

  • Application: For Use with Armored Cable and Flexible Metal Conduit
  • Brand / Label: T&B
  • Color: Metallic
  • Material: Steel
  • Number of Batteries: 0
  • Product Name: STEEL FITTING FOR ARMORED CABLE/CON
  • Product Type: Armored Cable/Flexible Metal Conduit Fittings
  • Size: 3/4 Inch
  • Special Functions: The Angle Clip Gives Secure Mechanical Grip that Tightens Under Tension or Vibration
  • Standards: UL E23018, CSA 2884
  • Surface Finishing: Electro Zinc Plated
  • UPC: 786210003252

Classifications

  • ETIM 6: EC001180 - Screw connection for protective metallic hose
  • ETIM 7: EC001180 - Screw connection for protective metallic hose
  • UNSPSC: 39121419
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4573 >> Flex connectors

Overview

UPC 78621000325
Product Description Metal-Clad and Armored Cable Fitting, 90 Degree Bend, Trade Size 3/4 Inch, Knockout Size 3/4 Inch, Cable Range 0.906 to 1.093 Inch, Malleable Iron with Zinc Plating
GTiN 00786210003252
Length 53.97 mm
Finish Electro Zinc Plated
Size 3/4 in
Type 90, 1-Piece
Material Steel
Conductor Size 0.906 - 1.093 in
Applications For Use with Armored Cable and Flexible Metal Conduit
Cable Type Armoured
Trade Size 3/4 Inch
Family Brand Name Thomas & Betts
TC Connection Male Threaded
Used With Armored Cable or Flexible Metallic Conduit
Sub Brand Tite-Bite
Color Metallic
Standard UL E23018,CSA 2884
