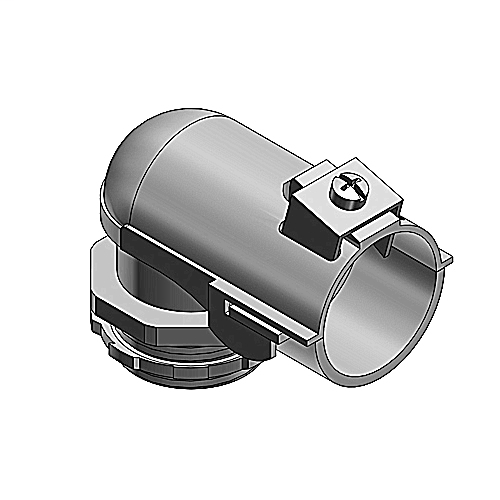

Thomas & Betts 326-TB 90 Degree Tite Bite Flex Connector
Product image thumbnail 0
Product image thumbnail 1
$1,817.21/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 326-TB
Capital Electric Part # 130645

Features

  • Throat is long enough to install in cast housing knockouts.
  • To connect and effectively bond armored cable or flexible metal conduit to a box or an enclosure.

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121419 Flex connectors
  • IGCC: 4573 Flex connectors
  • Brand Name: T&B
  • Type: Armored Cable/Flexible Metal Conduit Fittings
  • Special Features: The Angle Clip Gives Secure Mechanical Grip that Tightens Under Tension or Vibration
  • Application: For Use with Armored Cable and Flexible Metal Conduit
  • Standard: UL E23018, CSA 2884
  • Size: 1 Inch
  • Connection: 90 Degree
  • Conductor Range: 1.250 to 1.468 Inch
  • Material: Malleable Iron
  • Finish: Electro Zinc Plated
  • Color: Metallic

European Specifications (ETIM)

  • ETIM: EC001180 Screw connection for protective metallic hose
  • Nominal size in inch: 1 inch
  • Model: 90°-elbow
  • Revolving thread: N
  • Construction type: External thread
  • Connection type screw connection to housing: Other
  • Material housing: Other
  • Surface protection: Zinc coated
  • Thread length: 25.4mm

Packaging

  • Inner Quantity: 5
  • Inner Dimensions (inches): 6x4x4
  • Outer Quantity: 25
  • Outer Dimensions (inches): 21.5x5x7
  • Weight Uom: 50 lbs. per 100

Overview

UPC 78621000326
Product Description Metal-Clad and Armored Cable Fitting, 90 Degree Bend, Trade Size 1 Inch, Knockout Size 1 Inch, Cable Range 1.250 to 1.468 Inch, Malleable Iron with Zinc Plating
GTiN 00786210003269
Length 67.4 mm
Finish Electro Zinc-Plated
Size 1 Inch
Color Metallic
Type 90, 1-Piece
Material Malleable Iron
Conductor Size 1-1/4 - 1.468 in
Applications For Use with Armored Cable and Flexible Metal Conduit
Cable Type Armoured
Trade Size 1 Inch
Construction Type External Thread
Connection Type 90 Degree
Thread Length 25.4 mm
Family Brand Name Thomas & Betts
Housing Material Other
Box Quantity 25
TC Connection Male Threaded
Used With Armored Cable or Flexible Metallic Conduit
Sub Brand Tite-Bite
