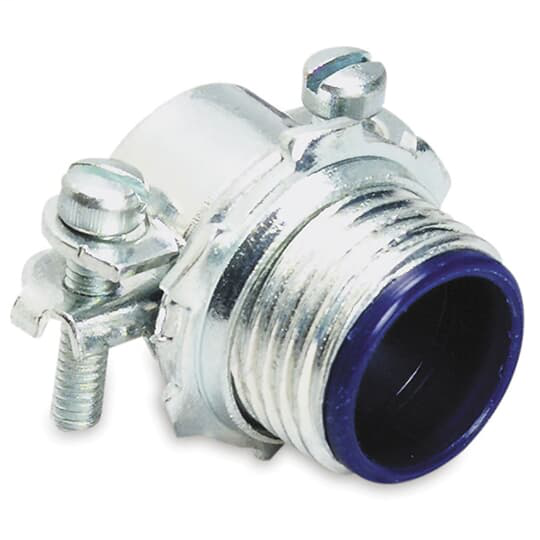

Thomas & Betts 3303M 3/4 Inch Insulated 2 Screw Connector
Product image thumbnail 0
Product image thumbnail 1
$506.96/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 3303M
Capital Electric Part # 331487

Specifications

Ordering

  • EAN: 5414363135562
  • Customs Tariff Number: 7326908688

Dimensions

  • Product Net Weight: .116 lb52.608 g

Container Information

  • Package Level 1 Units: 50 piece
  • Package Level 1 Width: 5 in127 mm
  • Package Level 1 Height: 4 in102 mm
  • Package Level 1 Depth / Length: 8 in203 mm
  • Package Level 2 Units: 250 piece
  • Package Level 2 Width: 5.8 in147 mm
  • Package Level 2 Height: 8.5 in216 mm
  • Package Level 2 Depth / Length: 21 in533 mm

Additional Information

  • Application: To Connect Non-Metallic Sheathed Cable and Flexible Cord to a Box or an Enclosure.
  • Brand / Label: T&B
  • Color: Metallic
  • Insulation Material: Nylon
  • Material: Steel
  • Number of Batteries: 0
  • Product Name: T&B BX/FLX/MC FITTINGS
  • Product Type: Non-Metallic Sheathed Cable Conduit Fittings
  • Size: 3/4 Inch
  • Special Functions: Rounded Cable Grip and Smooth Bushing Protect The Cable Sheath and Wire Insulation, Since Saddle is Threaded, Screws Do Not Travel or Extend Beyond The Connector Body As It is Clamped to The Cable, An Extra Lip on The Saddle Closes The Unused Part of The Connector Opening.
  • Standards: UL E23013, CSA 2884
  • Surface Finishing: Electro Zinc Plated
  • UPC: 786210805535

Classifications

  • ETIM 6: EC001180 - Screw connection for protective metallic hose
  • ETIM 7: EC001180 - Screw connection for protective metallic hose
  • UNSPSC: 39121419
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4573 >> Flex connectors

Overview

UPC 78621080553
Product Description Sheathed Cable Fitting, Straight, Knockout Size 3/4 Inch, Nylon Insulated, Two Screw Connector, Steel with Zinc Plating
GTiN 05414363135562
Finish Electro Zinc Plated
Size 3/4 in
Type Straight
Material Steel
Applications To Connect Non-Metallic Sheathed Cable and Flexible Cord to a Box or an Enclosure
Trade Size 3/4 Inch
Family Brand Name Thomas & Betts
TC Connection NPT
Sub Brand UL E17583, CSA
Color Metallic
Standard CSA 2884,UL E23013
