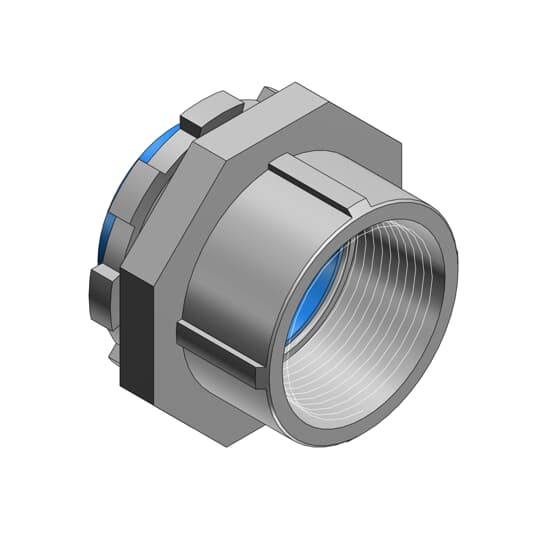

Thomas & Betts 371AL 3/4 Inch Aluminum Bullet Hub Type Connector
Product image thumbnail 0
Product image thumbnail 1
$2,243.85/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts Co
Mfg Catalog # 371AL
Capital Electric Part # 117036

Specifications

Ordering

  • EAN: 5414363141587
  • Customs Tariff Number: 8547900030

Dimensions

  • Product Net Weight: .146 lb66.213 g

Container Information

  • Package Level 1 Units: 25 piece
  • Package Level 1 Width: 5 in127 mm
  • Package Level 1 Height: 4 in102 mm
  • Package Level 1 Depth / Length: 6 in152 mm
  • Package Level 2 Units: 50 piece
  • Package Level 2 Width: 6 in152 mm
  • Package Level 2 Height: 6.9 in175 mm
  • Package Level 2 Depth / Length: 8.8 in224 mm

Additional Information

  • Application: To Connect Threaded Metal Conduit to a Threadless Opening in a Box or Enclosure
  • Brand / Label: T&B
  • Material: Aluminum
  • Number of Batteries: 0
  • Product Name: INSULATED FITTING FOR CONDUIT
  • Product Type: Hub Connector
  • Size: 3/4 Inch
  • Special Functions: Rain Tight and CSA Certified Watertight and Dust Tight
  • Standards: UL E23018, CSA
  • Temperature Range: UL Listed 105 °C
  • UPC: 786210829166

Classifications

  • ETIM 6: EC001180 - Screw connection for protective metallic hose
  • ETIM 7: EC001180 - Screw connection for protective metallic hose
  • UNSPSC: 39121311
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4441 >> Electrical fittings

Overview

UPC 78621082916
Product Description 3/4 Inch Hub Connector, Aluminum, for Use with Rigid/IMC Conduit
GTiN 05414363141587
Size 3/4 in
Type Straight
Material Aluminum
Applications To Connect Threaded Metal Conduit to a Threadless Opening in a Box or Enclosure
Temperature Rating UL Listed 105 C
Family Brand Name Thomas & Betts
Blade Dimensions 41.148 mm dia x 34.798 mm L
Standard UL E23018,CSA
